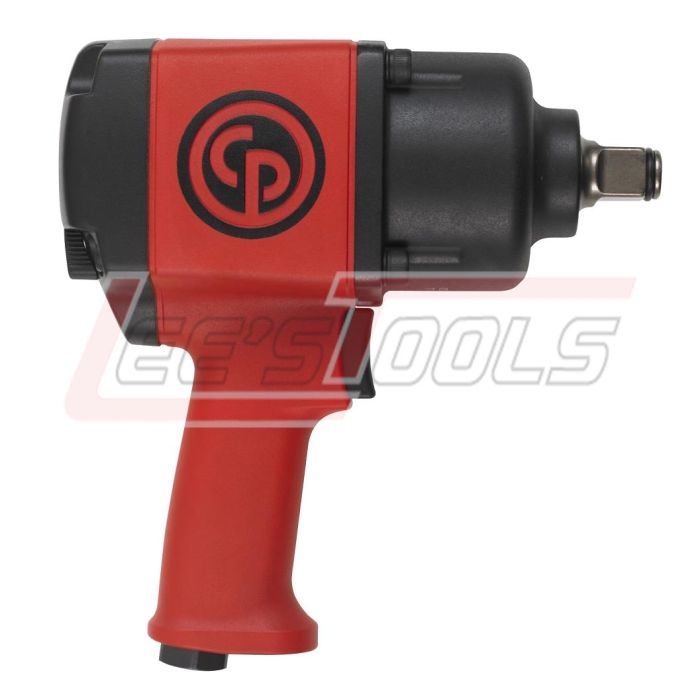

CP - CHICAGO PNEUMATIC 8941077630 CP7763 3/4" IMPACT WRENCH
$414.92
Out of stock
SKU
2085829
CP7763 - Compact & Powerful for General Maintenance
Features
·
Ideal for General Maintenance applications
·
Powerful motor and durable clutch
·
Operator comfort
·
3/4" impact wrenchwith Ring retainer
·
Twin hammer clutch
·
High power: 1,200 ft.lbs (1,627 Nm)
·
Combined power regulator with forward/reverse
Technical
description
|
Part number |
8941077630 |
|
|
Model |
CP7763 |
|
|
Handle type |
Pistol |
|
|
Square drive |
3/4" |
|
|
Working Torque Range (fwd) |
136-1288 Nm |
100-950 |
|
Maximum Torque (reverse) |
1630 Nm |
1200 ft.lbs |
|
Free speed |
6300 rpm |
|
|
Blows per minute |
900 |
|
|
Net weight |
5.25 kg |
11.57 lb |
|
Power/weight ratio |
309.9 Nm/kg |
103.7 ft.lb/lb |
|
Length |
229 mm |
8.8" |
|
Side to center |
45 mm |
1.8" |
|
Average air consumption |
3.5 l/s |
7.5 cfm |
|
Actual air consumption |
14.2 l/s |
30 cfm |
|
Air inlet thread size |
0.375 " |
|
|
Min. hose size |
13 mm |
1/2" |
|
Noise level |
96 db(A) |
|
|
Sound Power |
107 db(A) |
|
|
Vibration (ISO-8662-7) |
9 m/s² |
|
|
Vibration a (ISO-28927-2) |
10.4 m/s² |
|
|
Vibration K (ISO-28927-2) |
4.2 m/s² |
|
|
Socket retainer |
Friction ring |
|
|
Clutch type |
Twin hammer |
|
| Availability | Out of Stock |
|---|---|
| Manufacturer | CP - CHICAGO PNEUMATIC |
| Manufacturer Sku | 8941077630 |
