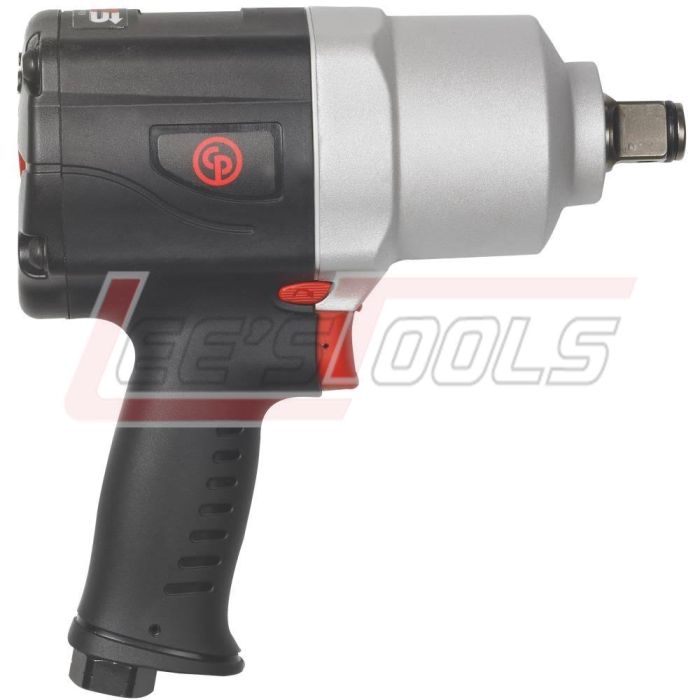

CP - CHICAGO PNEUMATIC 8941077690 CP7769 3/4" IMPACT WRENCH S2S COMPOSITE
$0.00
Out of stock
SKU
2085831
CP7759Q - Comfort & power
Features
·
New technology optimizing power-to-weight ratio
for General Maintenance applications
·
Maximize operator comfort thanks to Unique CP
Handle design
·
Side-2-side: the Most convenient reverse
technology in the market
·
1/2" composite & carbon fiber impact wrench
·
Rugged technology with carbon fiber inlay
·
Lightweight with a magnesium clutch housing and
composite handle
·
S2S easy forward reverse: Side to Side patented
technology
·
780 ft.lbs (1,054Nm) of maximum torque in reverse
·
Full teasing trigger
·
Integrated mufler for low noise
·
Flexible 360° swivel air inlet
Technical
description
|
Part number |
8941077518 |
|
|
Model |
CP7759Q |
|
|
Over carton |
670*245*130 |
26,38*9,65*5,12 |
|
Handle type |
Pistol |
|
|
Square drive |
1/2" |
|
|
Working Torque Range (fwd) |
100-630 Nm |
75-460 |
|
Maximum Torque (reverse) |
1054 Nm |
780 ft.lbs |
|
Free speed |
8000 rpm |
|
|
Blows per minute |
1200 |
|
|
Net weight |
1.74 kg |
3.74 lb |
|
Power/weight ratio |
605.7 Nm/kg |
208.6 ft.lb/lb |
|
Length |
187 mm |
7.4" |
|
Average air consumption |
2.2 l/s |
4.8 cfm |
|
Actual air consumption |
11 l/s |
23 cfm |
|
Free speed air consumption |
2.5 l/s |
5.29 cfm |
|
Air inlet thread size |
0.25 " |
|
|
Min. hose size |
10 mm |
3/8" |
|
Noise level |
93.2 db(A) |
|
|
Sound Power |
104.4 db(A) |
|
|
Vibration a (ISO-28927-2) |
8.1 m/s² |
|
|
Vibration K (ISO-28927-2) |
1.7 m/s² |
|
|
Socket retainer |
Friction ring |
|
|
Clutch type |
Twin hammer |
|
|
Box dimensions |
210*220*82 |
8,27*8,67*3,2 |
| Availability | Out of Stock |
|---|---|
| Manufacturer | CP - CHICAGO PNEUMATIC |
| Manufacturer Sku | 8941077690 |
