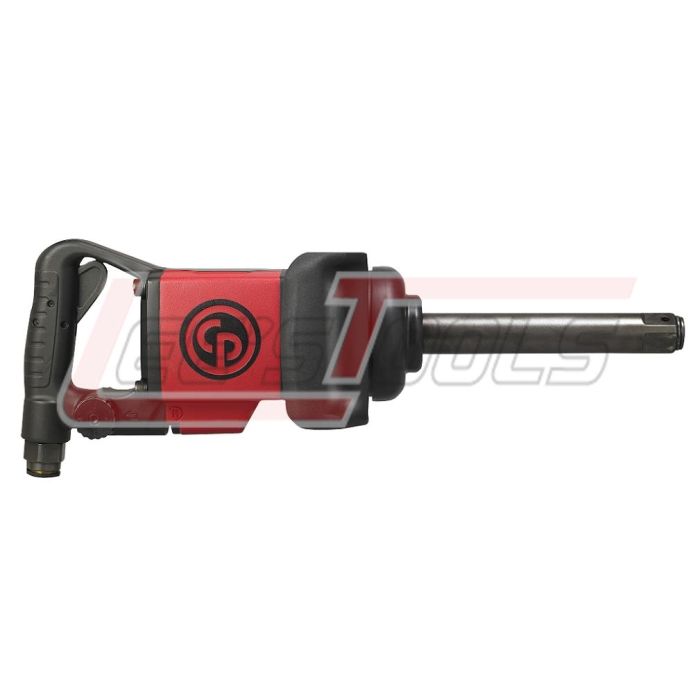

CP - CHICAGO PNEUMATIC 8941077806 CP7780-6 1" IMPACT WRENCH (LIGHTWEIGHT)
$0.00
Out of stock
SKU
2085844
CP7780-6 - Lightweight & powerful
Features
·
Maximize operator comfort with a lightweight
impact
·
Ergonomic and intuitive handling
·
High Power to Weight ratio for General
Maintenance applications
·
1" straight impact wrench with 6" extended
anvil
·
17 lbs (7,7 kg) thanks to an aluminum housing
giving less fatigue to the operator
·
1550 ft.lbs (2100Nm) maximum torque in reverse
·
Integrated protective cover on the clutch
housing
·
Twin hammer mechanism in oil bath
·
Dedicated lever for forward & reverse
·
Ergonomic side handle with soft touch grip
·
4-positions power setting for both directions
and on both sides of the tool
·
Socket retainer ring combined with hole
retainer
Technical Description
|
Part number |
8941077806
|
|
|
Model |
CP7780-6
|
|
|
Over carton |
527*212*291
|
20.7*8.3*11.5 |
|
Handle type |
D-Handle Inside Trigger |
|
|
Square drive |
1" |
|
|
Working Torque Range (fwd) |
350-1650 Nm |
260-1220
|
|
Maximum Torque (reverse) |
2100 Nm |
1550 ft.lbs |
|
Free speed |
5000 rpm |
|
|
Blows per minute |
790
|
|
|
Net weight |
7.7 kg |
17 lb |
|
Power/weight ratio |
301.3 Nm/kg |
100 ft.lb/lb |
|
Length |
490 mm |
19.3" |
|
Average air consumption |
5.6 l/s |
12 cfm |
|
Actual air consumption |
23.4 l/s |
49.8 cfm |
|
Air inlet thread size |
0.5 " |
|
|
Min. hose size |
13 mm |
1/2" |
|
Noise level |
94 db(A) |
|
|
Sound Power |
105 db(A) |
|
|
Vibration a (ISO-28927-2) |
13.9 m/s² |
|
|
Vibration K (ISO-28927-2) |
3.4 m/s² |
|
|
Socket retainer |
Dual
|
|
|
Clutch type |
Twin hammer oil bath |
|
|
Box dimensions |
512*198*136
|
20.2*7.8*5.4 |
| Availability | Out of Stock |
|---|---|
| Manufacturer | CP - CHICAGO PNEUMATIC |
| Manufacturer Sku | 8941077806 |
