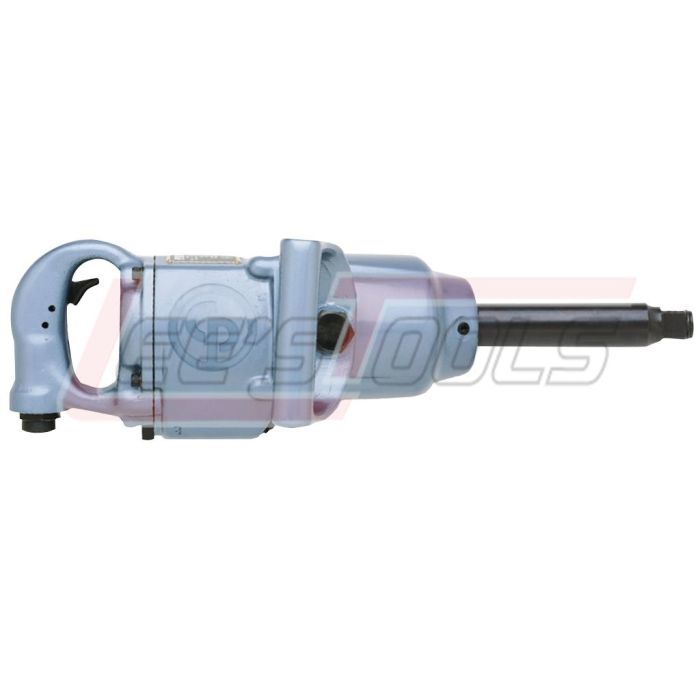

CP - CHICAGO PNEUMATIC T013901 CP797-6 1" IMPACT WRENCH
$0.00
Out of stock
SKU
2085868
CP797-6 - The truck tire Reference
Features
·
The undisputed market leader
·
Long known as the workhorse of the truck tire
industry
·
Clutch delivers smooth operation and extreme
durability
·
Ideal for high volume work on trucks, buses, and
heavy equipment
·
1" straight impact wrench
·
Rocking dog clutch
·
High performance and durability
·
Teasing throttle
·
Convenient reverse valve
·
Plus 6" extended anvil
Technical
Description
|
Part number |
T013901 |
|
|
Model |
CP797-6 |
|
|
Handle type |
D-Handle Inside Trigger |
|
|
Square drive |
1" |
|
|
Working Torque Range (fwd) |
200-1,225 Nm |
150-900 |
|
Maximum Torque (reverse) |
1898 Nm |
1400 ft.lbs |
|
Free speed |
4200 rpm |
|
|
Blows per minute |
1080 |
|
|
Net weight |
13.49 kg |
29.75 lb |
|
Power/weight ratio |
140.7 Nm/kg |
47.1 ft.lb/lb |
|
Length |
565 mm |
22.25" |
|
Average air consumption |
4.7 l/s |
10 cfm |
|
Actual air consumption |
18.9 l/s |
40 cfm |
|
Air inlet thread size |
0.5 " |
|
|
Min. hose size |
13 mm |
1/2" |
|
Noise level |
110 db(A) |
|
|
Sound Power |
121 db(A) |
|
|
Vibration (ISO-8662-7) |
7.6 m/s² |
|
|
Vibration a (ISO-28927-2) |
12.8 m/s² |
|
|
Vibration K (ISO-28927-2) |
4.3 m/s² |
|
|
Socket retainer |
Friction ring |
|
|
Clutch type |
Double rocking dog - Oil bath |
|
|
Box dimensions |
615x180x150 |
|
| Availability | Out of Stock |
|---|---|
| Manufacturer | CP - CHICAGO PNEUMATIC |
| Manufacturer Sku | T013901 |
