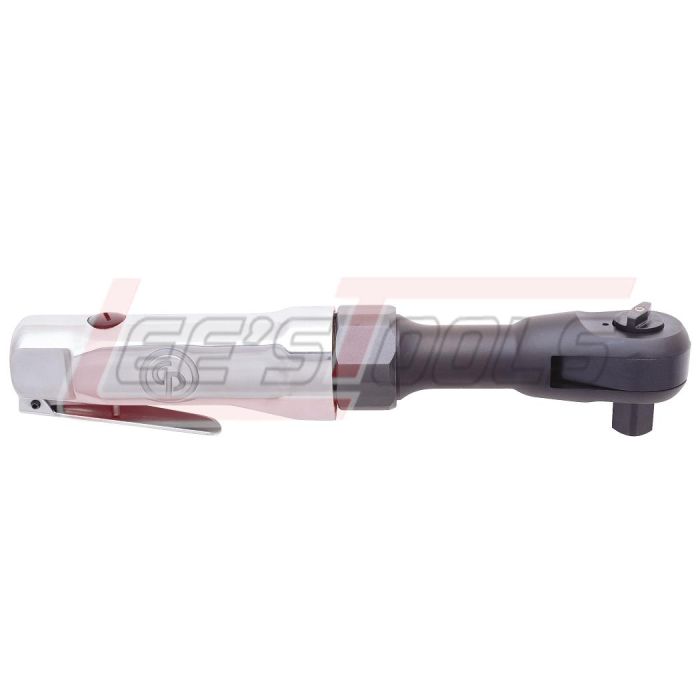

CP - CHICAGO PNEUMATIC T022970 CP828H 1/2" RATCHET
$0.00
Out of stock
SKU
2085880
CP828H - Durable, Grease fitting on the reverse button
Features
·
Ratchets for General Maintenance with excellent
durability
·
Great power up to 50 ft.lbs (70 Nm)
·
1/2" standard ratchet
·
Features CP's patented TriSpring anti-slip head
design
·
Grease fitting on the reverse lever
Technical
description
|
Part number |
T022970 |
|
|
Model |
CP828H |
|
|
Square drive |
1/2" |
|
|
Working torque Range |
13-70 Nm |
10-50 |
|
Max torque |
70 Nm |
50 ft.lbs |
|
Free speed |
150 rpm |
|
|
Net weight |
1.1 kg |
2.4 lb |
|
Length |
254 mm |
10" |
|
Average air consumption |
106 l/mn |
3.75 cfm |
|
Actual air consumption |
425 l/mn |
15 cfm |
|
Actual air consumption |
7.1 l/s |
15 cfm |
|
Air inlet thread size |
0.25 " |
|
|
Min. hose size |
10 mm |
3/8" |
|
Sound DBA pressure |
108 db(A) |
|
|
Noise level |
97 db(A) |
|
|
Vibration (ISO-8662-7) |
10 m/s² |
|
|
Vibration a (ISO-28927-2) |
3.2 m/s² |
|
|
Vibration K (ISO-28927-2) |
1.3 m/s² |
|
|
Sound DBA pressure |
103 |
|
| Availability | Out of Stock |
|---|---|
| Manufacturer | CP - CHICAGO PNEUMATIC |
| Manufacturer Sku | T022970 |
