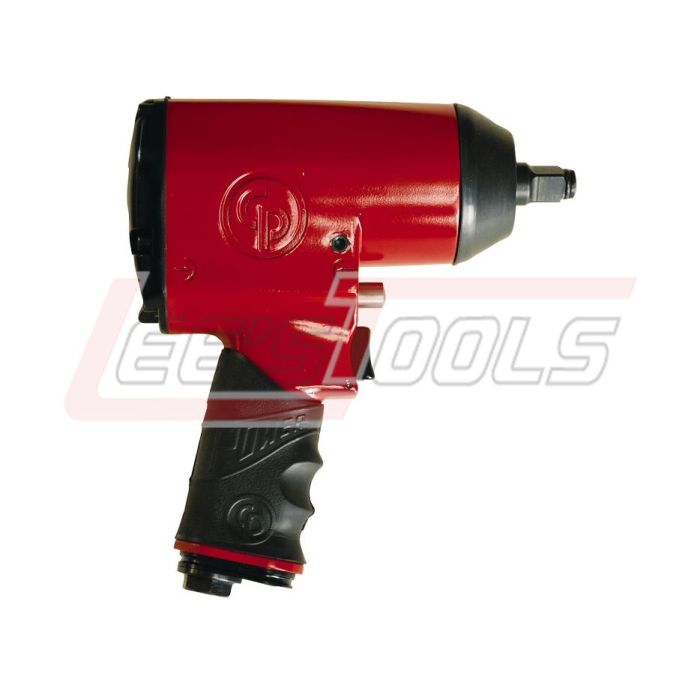

CP - CHICAGO PNEUMATIC T024587 CP749 1/2" IMPACT WRENCH
$0.00
Out of stock
SKU
2085803
CP749 - Powerful & Robust
Features
·
Powerful & resistante motor delivering high
torque
·
Withstands rough use with operator comfort
·
Ideal for general maintenance & repairs
·
1/2" impact wrench with ring socket retainer
·
CP's patented clutch
·
One-handed reverse button with 4-power settings
·
Compact design with comfortable contoured handle
·
Perfect for general maintenance
Technical
description
|
Part number |
T024587 |
|
|
Model |
CP749 |
|
|
Handle type |
Pistol |
|
|
Square drive |
1/2" |
|
|
Working Torque Range (fwd) |
68-610 Nm |
50-450 |
|
Maximum Torque (reverse) |
827 Nm |
610 ft.lbs |
|
Free speed |
6400 rpm |
|
|
Blows per minute |
1320 |
|
|
Net weight |
2.5 kg |
5 1/2 lb |
|
Power/weight ratio |
330.8 Nm/kg |
113.6 ft.lb/lb |
|
Length |
178 mm |
7" |
|
Average air consumption |
2.6 l/s |
5 1/2 cfm |
|
Actual air consumption |
10.4 l/s |
22 cfm |
|
Air inlet thread size |
0.25 " |
|
|
Min. hose size |
10 mm |
3/8" |
|
Noise level |
96 db(A) |
|
|
Sound Power |
107 db(A) |
|
|
Vibration (ISO-8662-7) |
4.9 m/s² |
|
|
Vibration a (ISO-28927-2) |
6.8 m/s² |
|
|
Vibration K (ISO-28927-2) |
2.5 m/s² |
|
|
Socket retainer |
Friction ring |
|
|
Clutch type |
SpringHammer™ Double dog - oil bath |
|
| Availability | Out of Stock |
|---|---|
| Manufacturer | CP - CHICAGO PNEUMATIC |
| Manufacturer Sku | T024587 |
