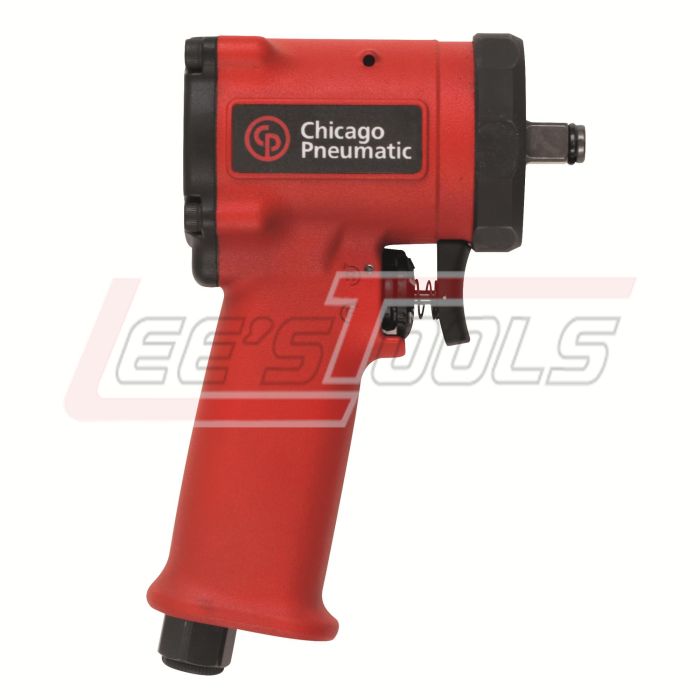

CP INDUSTRIAL 8941077310 CP7731 3/8" STUBBY IMPACT WRENCH
$0.00
Out of stock
SKU
2157297
CP7731 - Ultra Compact & Powerful
Benefits
·
Best power to weight ratio: 306 ft-lbs / 415 Nm
·
Ultra compact
·
Easy to use
·
Durable
Features
·
Steel front cover & Aluminum body
·
One hand operation forward – reverse by either
left or right handed users
·
3 setting positions
·
Length: 4.4" = 112 mm as can size
·
Jumbo hammer
Technical Description
|
Part number |
8941077310 |
|
|
Model |
CP7731 |
|
|
Handle type |
Pistol |
|
|
Square drive |
3/8" |
|
|
Working Torque Range (fwd) |
96-328 Nm |
71-242 |
|
Maximum Torque (reverse) |
415 Nm |
306 ft.lbs |
|
Free speed |
6400 rpm |
|
|
Blows per minute |
1200 |
|
|
Net weight |
1.3 kg |
2.9 lb |
|
Power/weight ratio |
319.2 Nm/kg |
105.5 ft.lb/lb |
|
Length |
112 mm |
4.4" |
|
Side to center |
25 mm |
1" |
|
Average air consumption |
2.1 l/s |
4.5 cfm |
|
Actual air consumption |
8.3 l/s |
18 cfm |
|
Air inlet thread size |
0.25 " |
|
|
Min. hose size |
10 mm |
3/8" |
|
Noise level |
93 db(A) |
|
|
Sound Power |
104 db(A) |
|
|
Vibration a (ISO-28927-2) |
8.5 m/s² |
|
|
Vibration K (ISO-28927-2) |
1.5 m/s² |
|
|
Socket retainer |
Friction ring |
|
|
Clutch type |
Single dog clutch |
|
| Availability | Out of Stock |
|---|---|
| Manufacturer | CP INDUSTRIAL |
| Manufacturer Sku | 8941077310 |
