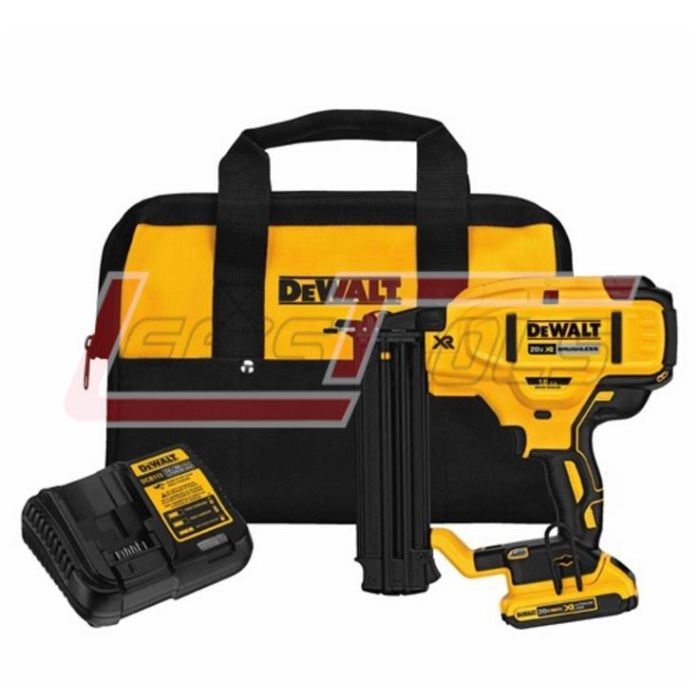

DEWALT DCN680D1 20V MAX 18GA BRAD NAILER KIT
20V MAX* XR® 18 GA
CORDLESS BRAD NAILER KIT
The DEWALT DCN680 18 Gauge Brad
Nailer drives 18 Gauge brad nails from 5/8" to 2-1/8" which makes it
ideal for fastening decorative molding, casing, kitchen crown, and shoe
molding. With its brushless motor powered by a DEWALT 20V MAX* Lithium-Ion
battery the DCN680 is ready to go to work without the hassle of using gas,
compressor, and hose. Tackle jobs both large and small with the features of a
pneumatic tool and the freedom of cordless. * - Maximum initial battery voltage
(measured without a workload) is 20 volts. Nominal voltage is 18.
Features
- 100% battery powered. Eliminates
the hassle of using gas, compressor, and hose
- Micro nose improves line of sight
and accuracy of nail placement (Compared to DEWALT DC608)
- Tool-free jam release to quickly
and easily clear nail jams
- Tool-free selectable trigger for
sequential or contact actuation modes
- Adjustable belt hook for left or
right attachment depending on user preference
- Compatible with all DEWALT 20V
MAX* batteries
- Brushless motor maximizes runtime
and durability
- Tool-free depth adjustment for
precise countersinking of nails
- Multi-functional LED lights help
to provide both workspace illumination and tool diagnostics
- Integrated tool-free stall
release lever to quickly reset the driver blade in the event of a stall
- Low nail lockout prevents dry
firing and unwanted marks on the work material
Specifications
|
BELT / RAFTER HOOK |
YES |
|
FASTENER LENGTH |
5/8 TO 2-1/8 |
|
FIRING / ACUTATION MODE |
TOOL FREE SELECTABLE TRIGGER |
|
POWER TOOL TYPE |
CORDLESS |
|
TOOL HEIGHT |
11.8 |
|
TOOL WEIGHT |
5.3 |
|
DEPTH ADJUSTMENT |
TOOL FREE |
|
FASTENER TYPE / GAUGE |
18 GAUGE BRAD NAILS |
|
JAM CLEARANCE |
TOOL FREE |
|
SYSTEM |
20V MAX |
|
TOOL LENGTH |
10.3 |
|
TOOL WIDTH |
3.7 |
Includes
DCN680 - Brad Nailer
DCB203 - 2.0Ah Battery
DCB112 – Charger
Kit Bag
| Availability | Out of Stock |
|---|---|
| Manufacturer | DEWALT |
| Manufacturer Sku | DCN680D1 |
