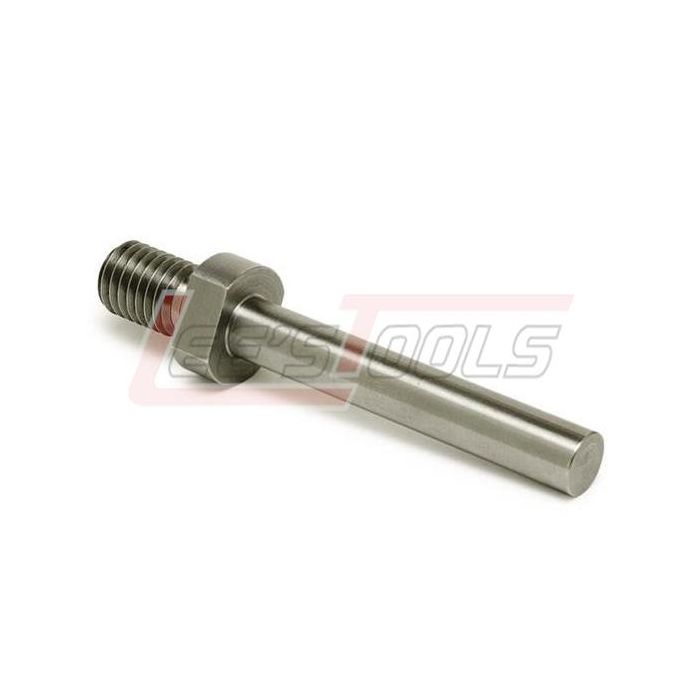

DIAMOND PRODUCTS 01899 4400033 - 1/2" S.SHANK TO 5/8-11 M. ADAPTER
$29.48
In stock
SKU
459710
CORE BIT ADAPTERS
|
Description |
Top Thread |
Bottom Thread Male |
Part # |
Cat # |
Weight |
|
1015 |
1.250”-7 Female |
5/8”-11 |
4400008 |
01878 |
2 lbs. |
|
1015-B |
1.250”-7 Female |
5/8”-11 Bolt * |
4400162 |
47697 |
2 |
|
1510 |
5/8”-11 Female |
1.250”-7 |
4400009 |
01880 |
2 |
|
1016 |
1.250”-7 Female |
5/8”-18 |
4400010 |
01881 |
2 |
|
1020 |
1/2”-20 Female |
5/8”-11 |
4400011 |
01882 |
2 |
|
Bantum-15 |
Bantum Female |
5/8”-11 |
4400012 |
01883 |
2 |
|
Morse #2 |
#2 Morse Taper Male |
5/8”-11 |
4400068 |
01920 |
2 |
|
Morse #3 |
#3 Morse Taper Male |
5/8”-11 |
4400061 |
01917 |
2 |
|
Morse #4 |
#4 Morse Taper Male |
5/8”-11 |
4400062 |
01918 |
2 |
|
Morse #5 |
#5 Morse Taper Male |
5/8”-11 |
4400063 |
79291 |
2 |
|
3/8” S.S. |
3/8” Straight Shank Male |
5/8”-11 |
4400056 |
01913 |
1 |
|
1/2” S.S. |
1/2” Straight Shank Male |
5/8”-11 |
4400033 |
01899 |
2 |
|
5/8” S.S. |
5/8” Straight Shank Male |
5/8”-11 |
4400087 |
01936 |
1 |
|
1/2” British standard piping** |
1/2” BSP Male |
5/8”-11 |
4400037 |
01905 |
2 |
|
1/2” British standard piping** |
1/2” BSP Male |
1.250”-7 |
4400036 |
01903 |
2 |
|
Large thread reducer |
1.875”-7 Female |
1.250”-7 |
4400121 |
01949 |
5 |
|
Large thread adapter |
1.250”-7 Female |
1.875”-7 |
4400134 |
01956 |
5 |
* Male bottom thread is a replaceable grade 8, 5/8”-11 bolt
with water way - Part # 4400163, Cat # 53577 ** For use on Weka motors
Standard core bits
have the following threaded hub sizes:
·
1-1/2” and under (bit diameter)= 5/8”-11 thread
·
(5/8” diameter, 11 threads per inch)
·
1-5/8” and up (bit diameter) = 1-250”-7 thread
·
(1-1/4” diameter, 7 threads per inch)
| Availability | In Stock |
|---|---|
| Manufacturer | DIAMOND PRODUCTS |
| Manufacturer Sku | 01899 |
