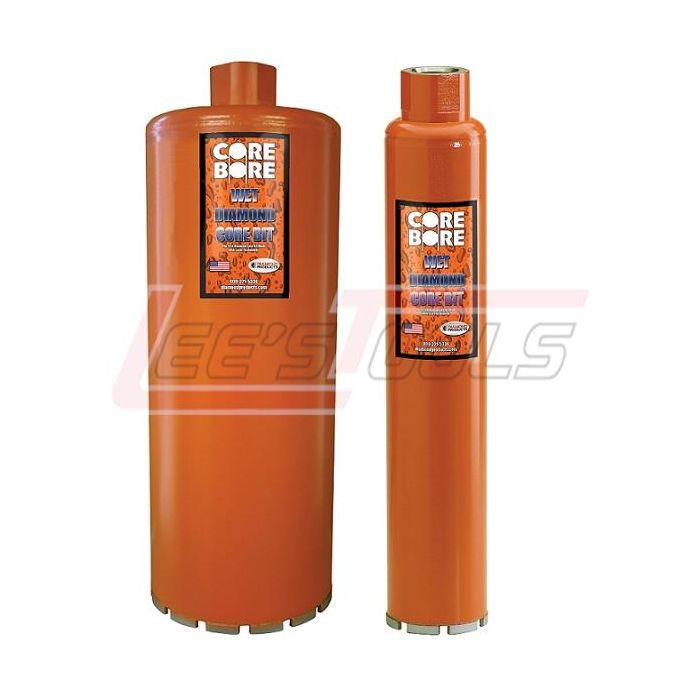

DIAMOND PRODUCTS 04837 BH1125 HOL - 1-1/8" HEAVY DUTY BIT

Heavy Duty Orange

Our most popular core bit, Heavy Duty Orange gives excellent footage and drilling speed. Designed for all types of wet drilling in applications with light to moderate steel, Heavy Duty Orange is the best bit in the industry. Very high quality diamond and longer coring life.

Specifications

·         HOL - General Purpose, Longer Life

·         H38F - Hard aggregate

·         H64L - Asphalt/Block Heavy

ORDERING INFORMATION:

·         All bits may be ordered with custom bonds

·         Note: All diameters are nominal.

·         Exact tolerances upon request.

Core Bit Lengths:

·         Up to 14” Diameter Core Bits Standard Core Length = 13”

·         16” Diameter Core bits Standard Core Length = 19”

·         18” Diameter Core Bits Standard Core Length = 21”

·         19” Diameter Core Bits Standard Core Length = 22”

·         20”to 30” Diameter Core bits Standard Core Length = 23”

Note: Any length available upon request.

Hub Sizes:

·         1/2” to 1-1/2” = 5/8”-11 threaded hub.

·         1-5/8” and up = 1-1/4”-7 threaded hub.

Heavy Duty Orange Wet Core Bits
