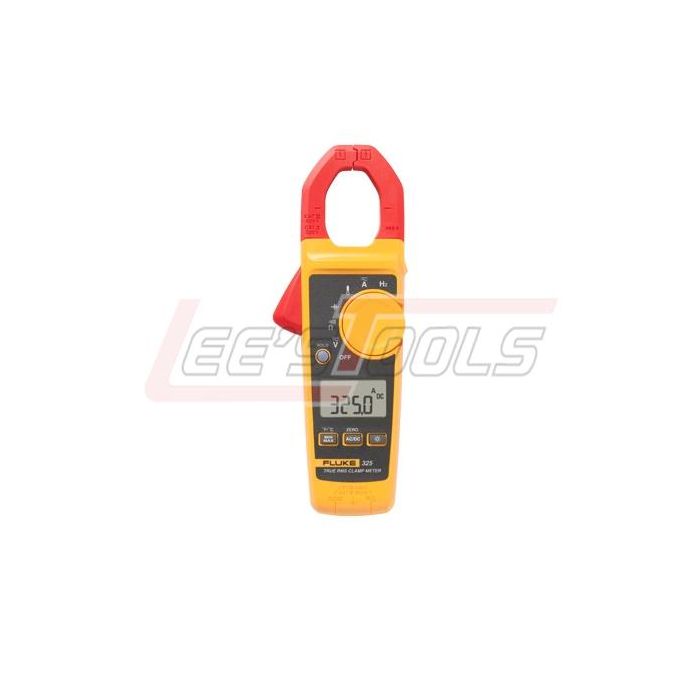

FLUKE FLUKE-325 400A AC/DC TRUE RMS CLAMP METER W/TEMP
$319.99
In stock
SKU
2397524
Fluke rugged. Fluke reliable.
Fluke precise.
True RMS measurements and optimized ergonomics make the 320
Series Clamp Meters the best general troubleshooting tools for commercial and
residential electricians. The 323, 324 and 325 are designed to verify the
presence of load current, AC voltage and continuity of circuits, switches,
fuses and contacts. These small and rugged clamp meters are ideally suited for
current measurements up to 400 A in tight cable compartments. The Fluke 325
also offers DC current and frequency measurements
Measurement capability
- 400 A AC and DC current measurement
- 600 V AC and DC voltage measurement
- True RMS AC voltage and current for accurate measurements on
non-linear signals
- Resistance measurement up to 40 k? with continuity detection
- Temperature and capacitance measurement
- Frequency measurement
Features
- Slim, ergonomic design
- Large, easy to read backlight display
- CAT IV 300V/CAT III 600 V safety rating
- Hold button
- Two-year warranty
- Soft carrying case
Specifications
|
AC current |
Range |
40.00 A / 400.0 A |
|
Accuracy |
2% ± 5 digits (45 Hz to 65 Hz) |
|
|
|
2.5% ± 5 digits (65 Hz to 400 Hz) |
|
|
DC current |
Range |
40.00 A / 400.0 A |
|
Accuracy |
2% ± 5 digits |
|
|
AC voltage |
Range |
600.0 V |
|
Accuracy |
1.5% ± 5 digits |
|
|
DC voltage |
Range |
600.0 V |
|
Accuracy |
1.0% ± 5 digits |
|
|
Resistance |
Range |
400.0 ? / 4000 ? / 40.00 k? |
|
Accuracy |
1.0% ± 5 digits |
|
|
Continuity |
|
= 30 ? |
|
Capacitance |
|
0 to 100.0 µF / 100µF to 1000 µF |
|
Frequency |
|
5.0 Hz to 500.0 Hz |
|
AC response |
|
True-RMS |
|
Backlight |
|
Yes |
|
Data hold |
|
Yes |
|
Contact temperature |
|
-10.0°C to 400.0°C (14.0°F to 752.0°F) |
|
Min/Max |
|
Yes |
|
Size |
H x W x D (mm) |
207 x 75 x 34 |
|
Max wire diameter |
30 mm (600 MCM) |
|
|
Weight |
283 g |
|
|
Category rating |
|
CAT III 600 V |
|
CAT IV 300 V |
||
|
Warranty |
|
Two-year |
| Availability | In Stock |
|---|---|
| Manufacturer | FLUKE |
| Manufacturer Sku | FLUKE-325 |
