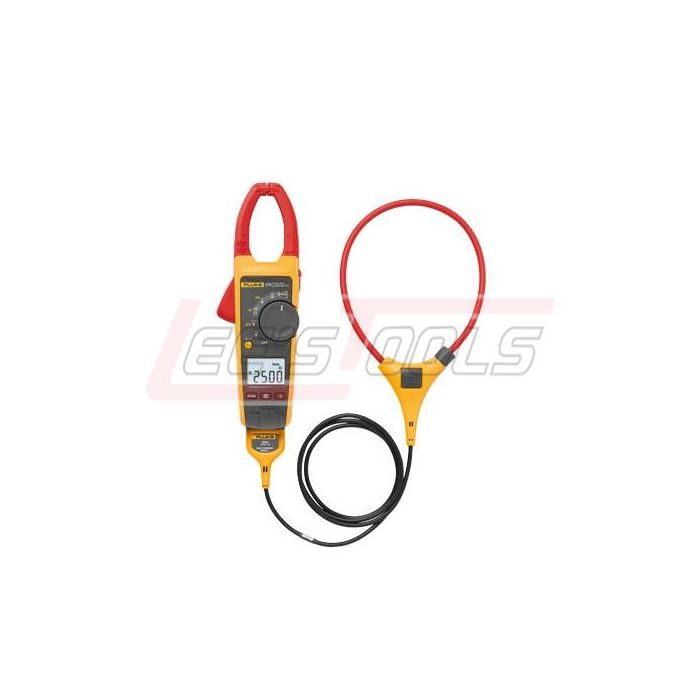

FLUKE FLUKE-376 FC 1000A AC/DC TRMS WIRELESS CLAMP W/ IFLEX
$0.00
Out of stock
SKU
2397534
Fluke 376 FC True-rms
AC/DC Clamp Meter with iFlex®
The Fluke 376 FC Wireless True-rms AC/DC Clamp Meter offers
measurements up to 1000 V and 1000 A, ac or dc, plus an included iFlex™
Flexible Current Clamp.
The Fluke 376 FC is part of the Fluke Connect family of
wireless test tools. Now you can:
Log and trend measurements to pinpoint intermittent faults
Transmit results wirelessly via Fluke Connect® Measurements
app
Create and send reports right from the field
Stay safely away from the arc flash zone through Bluetooth
connectivity to Apple and Android devices
The Fluke 376 FC is the direct replacement for the Fluke 376
Clamp Meter.
Fluke Connect is not available in all countries.
Not all models are available in all countries. Contact your
local Fluke representative for more information.
Features
- Connect your meter to
your smartphone with Fluke Connect Measurements
- Read measurements on your phone
at a safe distance, wearing less PPE while your meter takes all the risks
- Record results directly to your
phone and the Cloud
- Capture intermittent faults while
performing other tasks using the logging capabilities of the Fluke 376 FC
- Create and share reports from the
field via email, or converse in real-time with ShareLive™ video calls
- iFlex flexible current probe expands
the measurement range to 2500 A ac; provides access to large conductors in
tight spaces (included)
- TPAK magnetic hanging strap
(included)
- Integrated VFD low pass filter
for accurate motor drive measurements
- Proprietary inrush measurement
technology to filter out noise and capture motor starting current exactly as
the circuit protection sees it
- CAT IV 600 V, CAT III 1000 V
safety rating
- Three-year warranty
- Soft carrying case
Measurement Capability
- 1000 A ac and dc current
measurement
- 2500 A ac current measurement
with iFlex flexible current probe
- 1000 V ac and dc voltage
measurement
- True-rms voltage and current for
accurate measurements on non-linear signals
- Frequency measurement to 500 Hz
with body jaw and iFlex
- Resistance measurement to 60 k?
with continuity detection
- Min, max, average, and inrush
recording to capture variations automatically
- 500 mV dc measurement range to
interface with other accessories
- 1000 µF capacitance measurement
General Specifications
|
AC Current via Jaw |
|
|
Range |
999.9 A |
|
Resolution |
0.1 A |
|
Accuracy |
2% ±5 digits (10 Hz to 100 Hz) |
|
2.5% ±5 digits (100-500 Hz) |
|
|
Crest Factor (50 Hz/60 Hz) |
3 @ 500 A |
|
2.5 @ 600 A |
|
|
Add 2% for C.F. >2 |
|
|
AC Current via Flexible Current
Probe |
|
|
Range |
2500 A |
|
Resolution |
0.1 A (= 600 A) |
|
1 A (= 2500 A) |
|
|
Accuracy |
3% ±5 digits (5 – 500 Hz) |
|
Crest Factor (50/60Hz) |
3.0 at 1100 A |
|
2.5 at 1400 A |
|
|
1.42 at 2500 A |
|
|
Add 2% for C.F. > 2 |
|
Includes
- 18-inch iFlex® Flexible Current
Probe
- TPAK magnetic hanging strap
- Soft carrying case
- TL75 test leads
- Two AA Alkaline batteries
- Coated instruction card
- Safety information sheet
| Availability | Out of Stock |
|---|---|
| Manufacturer | FLUKE |
| Manufacturer Sku | FLUKE-376 FC |
