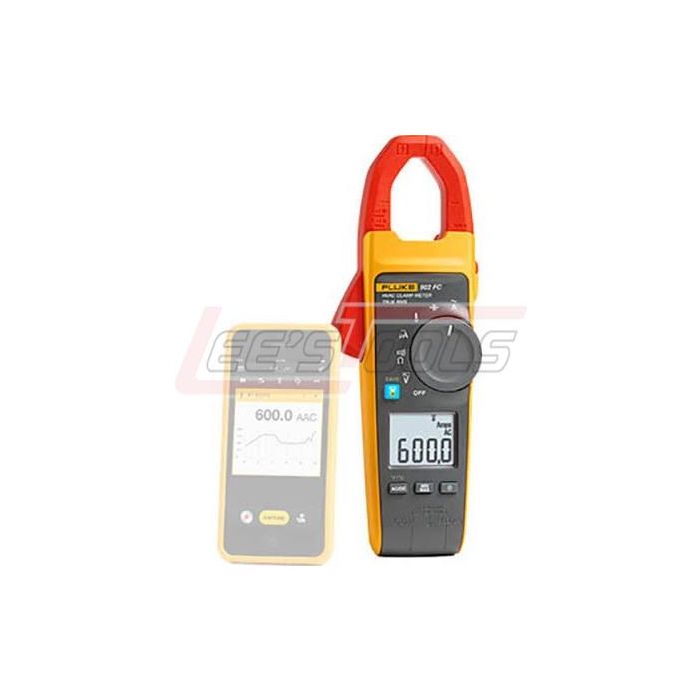

FLUKE FLUKE-902FC TRMS WIRELESS HVAC CLAMP METER

True-rms HVAC Clamp Meter

HVAC technicians who need agility in the field depend on the Fluke 902 FC HVAC clamp meter. The rugged dual-rated CAT III 600 V, CAT IV 300 V meter performs all the essential measurements of HVAC systems, eliminating the need to carry multiple tools. Its small body is easy to hold and the jaw fits perfectly in tight work spaces. Use Fluke Connect® with the 902 FC to remove yourself from the point of measurement and, instead, read measurements from afar. Fluke Connect® also helps you pinpoint intermittent faults faster by logging and trending measurements. With more and more of a need to integrate reporting and documentation of your facilities’ health, the Fluke Connect® software system allows you to view different measurements—thermal, mechanical and electrical—from the same piece of equipment at the same time

Features

• Capture and trend measurements from outside the arc blast zone and easily create and send reports from the field with Fluke Connect®
• 200 µA DC current measurements to measure flame rod
• Extended resistance range to measure thermistors up to 60 kO
• Capture flue gas temperature
• Measure start and run motor capacitors
• Measure performance of variable frequency drives
• 600 A ac current measurement and 600 V ac and dc voltage measurement
• Temperature measurement from -10 °C to 400 °C (14 °F to 752 °F)
• 1000 µF capacitance measurement
• True-rms voltage and current for accurate measurements on non-linear signals

Applications

Test & Measurement, Industrial, HVAC

Contents

TL75 test leads, 80BK integrated DMM temperature probe, 2 AA alkaline batteries, soft carrying case, user's manual and statement of calibration.
