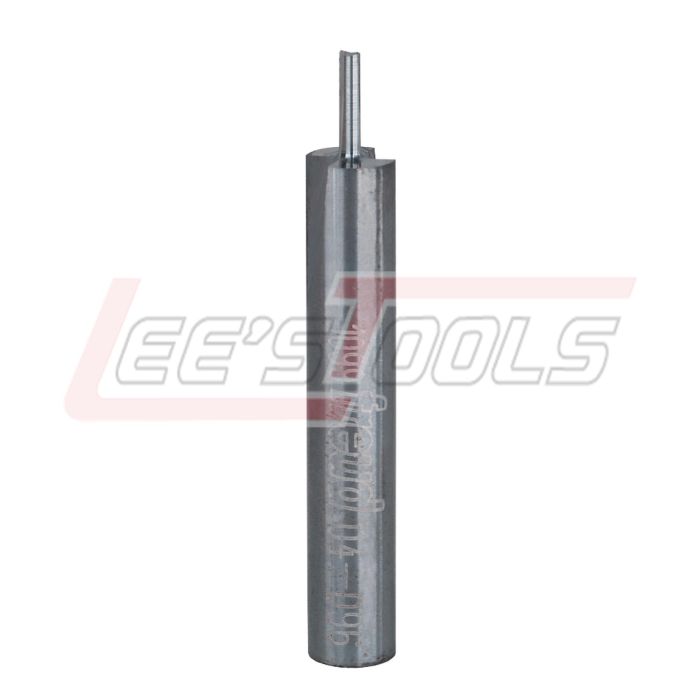

FREUD 04-096 TWO FLUTE STRAIGHT BIT
$17.97
In stock
SKU
524686
Double Flute Straight Bits
Application: General stock removal
with a smooth finish
• Freud straight bits cut smoother than other bits
because of the precise shear and hook angles. End of bit relief allows for fast
plunging.
• Cuts all composite materials, ply-woods,
hardwoods, and softwoods.
• Use on CNC and other automatic routers as well as
hand-held and table-mounted portable routers.
Key Specifications
|
Item # |
Overall Dia.(D) |
Carbide Height(h) |
Shank Dia.(A) |
Overall Length(H) |
|
04-096* |
1/16 " |
1/4 " |
1/4 " |
1-5/8 " |
|
04-098* |
3/32 " |
3/8 " |
1/4 " |
1-5/16 " |
|
04-100*
|
1/8 " |
3/8 " |
1/4 " |
1-3/4 " |
|
04-101*
|
5/32 " |
5/8 " |
1/4 " |
1-1/2 " |
|
04-102* |
3/16 " |
1/2 " |
1/4 " |
2 " |
|
04-103* |
3/16 " |
5/8 " |
1/4 " |
2 " |
|
04-104*
|
1/4 " |
1/2 " |
1/4 " |
2 " |
|
04-105*
|
1/4 " |
5/8 " |
1/4 " |
2 " |
|
04-106* |
1/4 " |
3/4 " |
1/4 " |
2-1/4 " |
|
04-107*
|
1/4 " |
7/8 " |
1/4 " |
2-1/4 " |
|
04-108*
|
1/4 " |
1 " |
1/4 " |
2-1/2 " |
|
04-109*
|
1/4 " |
7/8 " |
1/4 " |
2-7/8 " |
|
04-110*
|
1/4 " |
1 " |
1/4 " |
2-7/8 " |
|
04-112 |
9/32 " |
1 " |
1/4 " |
2 " |
|
04-118
|
5/16 " |
1 " |
1/4 " |
2-1/2 " |
|
04-120
|
3/8 " |
7/8 " |
1/4 " |
1-7/8 " |
|
04-124
|
3/8 " |
1 " |
1/4 " |
2-1/2 " |
|
04-126
|
3/8 " |
1-1/4 " |
1/4 " |
2-11/16 " |
|
04-127
|
15/32 " |
3/4 " |
1/4 " |
2 " |
|
04-128 |
15/32 " |
7/8 " |
1/4 " |
2-3/8 " |
|
04-129
|
7/16 " |
1 " |
1/4 " |
2-1/2 " |
|
04-130
|
1/2 " |
3/4 " |
1/4 " |
2-1/4 " |
|
04-131
|
1/2 " |
7/8 " |
1/4 " |
1-7/8 " |
|
04-132
|
1/2 " |
1 " |
1/4 " |
2-1/8 " |
|
04-133
|
1/2 " |
1-1/4 " |
1/4 " |
2-3/4 " |
|
04-134
|
9/16 " |
3/4 " |
1/4 " |
2-1/8 " |
|
04-136
|
5/8 " |
3/4 " |
1/4 " |
2-1/8 " |
|
04-137
|
5/8 " |
1-1/4 " |
1/4 " |
2-3/4 " |
|
04-138
|
11/16 " |
3/4 " |
1/4 " |
2-1/8 " |
|
04-140
|
3/4 " |
3/4 " |
1/4 " |
2-1/8 " |
|
04-144
|
13/16 " |
3/4 " |
1/4 " |
2 " |
|
04-148
|
7/8 " |
3/4 " |
1/4 " |
2 " |
|
04-152
|
1 " |
3/4 " |
1/4 " |
2 " |
|
04-156
|
1
|
1-1/8 " |
1/4 " |
2-9/16 " |
|
08-106
|
1/4 " |
3/4 " |
3/8 " |
2 " |
|
08-124
|
3/8 " |
1 " |
3/8 " |
2-1/4 " |
|
08-132
|
1/2 " |
1 " |
3/8 " |
2-1/2 " |
|
08-136
|
5/8 " |
1 " |
3/8 " |
2-1/4 " |
|
08-152
|
3/4 " |
1 " |
3/8 " |
2-1/4 " |
|
08-166
|
7/8 " |
1 " |
3/8 " |
2-1/4 " |
|
12-096 |
15/64 " |
3/4 " |
1/2 " |
2-13/32 " |
|
12-100 |
1/4 " |
3/4 " |
1/2 " |
2-3/8 " |
|
12-102 |
1/4 " |
7/8 " |
1/2 " |
2-7/8 " |
|
12-106 |
5/16 " |
1 " |
1/2 " |
2-3/4 " |
|
12-108 |
3/8 " |
1 " |
1/2 " |
2-5/8 " |
|
12-110 |
3/8 " |
1-1/4 " |
1/2 " |
2-7/8 " |
|
12-112** |
13/32 " |
1 " |
1/2 " |
2-5/8 " |
|
12-113 |
7/16 " |
1-1/4 " |
1/2 " |
3-1/4 " |
|
12-115 |
7/8 " |
1-1/4 " |
1/2 " |
2-3/4 " |
|
12-116 |
1/2 " |
1 " |
1/2 " |
2-5/8 " |
|
12-118 |
1/2 " |
1-1/4 " |
1/2 " |
2-7/8 " |
|
12-122 |
1/2 " |
1-1/2 " |
1/2 " |
3-1/8 " |
|
12-124 |
1/2 " |
1-1/2 " |
1/2 " |
4-1/4 " |
|
12-128 |
1/2 " |
2 " |
1/2 " |
4-1/8 " |
|
12-130 |
1/2 " |
2-1/2 " |
1/2 " |
4-3/8 " |
|
12-134 |
9/16 " |
1-1/4 " |
1/2 " |
2-7/8 " |
|
12-136 |
5/8 " |
1 " |
1/2 " |
2-1/2 " |
|
12-138 |
5/8 " |
1-1/4 " |
1/2 " |
2-1/2 " |
|
12-140 |
5/8 " |
1-1/2 " |
1/2 " |
3 " |
|
12-142 |
5/8 " |
2 " |
1/2 " |
4 " |
|
12-148 |
11/16 " |
1-1/4 " |
1/2 " |
3 " |
|
12-152 |
3/4 " |
1 " |
1/2 " |
2-1/2 " |
|
12-154 |
3/4 " |
1-1/4 " |
1/2 " |
3 " |
|
12-156 |
3/4 " |
1-1/2 " |
1/2 " |
3 " |
|
12-158 |
3/4 " |
2 " |
1/2 " |
3-1/2 " |
|
12-162 |
13/16 " |
1-1/4 " |
1/2 " |
3 " |
|
12-168 |
7/8 " |
1-1/4 " |
1/2 " |
3 " |
|
12-172 |
1 " |
1-1/4 " |
1/2 " |
3 " |
|
12-178 |
1-1/8 " |
1-1/2 " |
1/2 " |
3 " |
|
12-182 |
1-1/4 " |
1-1/2 " |
1/2 " |
2-7/8 " |
|
12-186 |
1-3/8 " |
1-1/4 " |
1/2 " |
3 " |
|
12-190 |
1-1/2 " |
1-1/4 " |
1/2 " |
3 " |
|
12-194 |
1-3/4 " |
1-1/4 " |
1/2 " |
3 " |
|
Undersized plywood bits |
||||
|
04-111*
|
7/32 " |
3/4 " |
1/4" |
2" |
|
04-127
|
15/32 " |
3/4 " |
1/4 " |
2 " |
|
04-128 |
15/32 " |
7/8 " |
1/4 " |
2-3/8 " |
|
12-114 |
12-114 |
12-114 |
12-114 |
12-114 |
|
12-135 |
15/32” |
1-1/4” |
1/2" |
2-7/8” |
|
12-150 |
23/32” |
1-1/4” |
1/2" |
2-7/8” |
|
Metric Version |
||||
|
04-502*
|
2mm
|
5/32 " |
1/4 " |
1-1/2 " |
|
04-508*
|
3mm |
5/16 " |
1/4 " |
1-3/4 " |
|
04-512*
|
5mm
|
1-5/32 " |
1/4 " |
2 " |
|
04-516
|
10mm
|
3/4 " |
1/4 " |
1-7/8 " |
|
04-520
|
10mm
|
1-1/4 " |
1/4 " |
2-3/8 " |
|
04-524
|
12mm
|
3/4 " |
1/4 " |
2-1/64 " |
|
04-528
|
12mm
|
1-1/4 " |
1/4 " |
2-3/8 " |
|
04-532
|
15mm
|
3/4 " |
1/4 " |
2-1/4 " |
|
04-536
|
15mm
|
1-1/4 " |
1/4 " |
2-5/8 " |
|
04-540
|
16mm
|
3/4 " |
1/4 " |
2-1/4 " |
|
04-544
|
16mm
|
1-1/4 " |
1/4 " |
2-5/8 " |
|
04-548
|
18mm
|
3/4 " |
1/4 " |
2 " |
|
04-552
|
20mm
|
3/4 " |
1/4 " |
2 " |
|
12-520 |
10mm |
1-1/4 " |
1/2 " |
2-3/4 " |
|
12-526 |
12mm |
1 " |
1/2 " |
2-1/2 " |
|
12-530 |
12mm |
1-1/4 " |
1/2 " |
2-3/4 " |
|
12-542 |
16mm |
1 " |
1/2 " |
2-1/2 " |
Notes:
* solid Carbine
** New bit for use with porter-cable dovetail
jig #4212
Red Item Number indicate 1/2" shank
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 04-096 |
