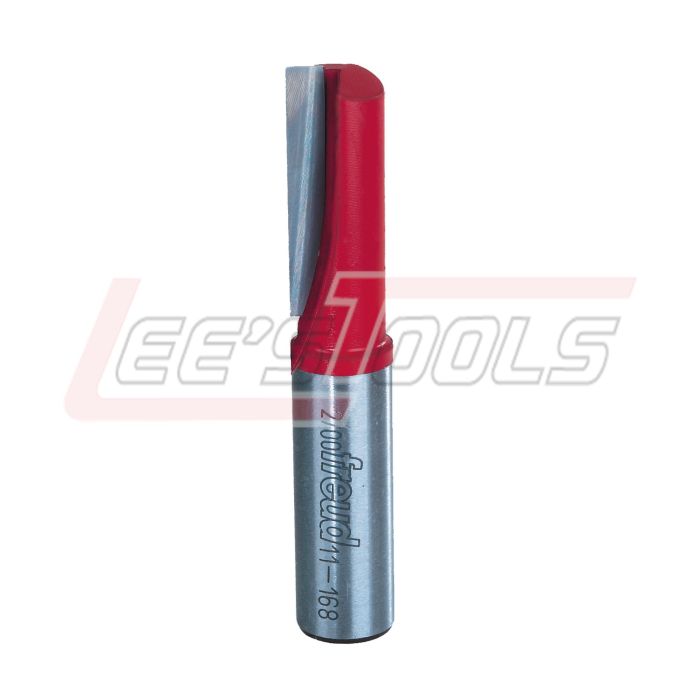

FREUD 11-168 SINGLE FLUTE STRAIGHT BIT
$18.97
In stock
SKU
524748
Single Flute
Straight Bits
Application: General stock
removal at fast feed rates
• These
single flute Freud bit was designed for
high production work with maximum chip clearance for fast feed
rates.
• Cuts all
composition materials, ply woods, hardwoods, and softwoods.
• Use on CNC and
other automatic routers as well as hand-held and table-mounted portable routers.
Specifications
|
Item #
|
Overall Dia.(D) |
Carbide
Height(h) |
Shank Dia.(A)
|
Overall
Length(H) |
|
03-112*
|
1/8"
|
3/8"
|
1/4"
|
1-1/2" |
|
03-116*
|
1/8"
|
1/2"
|
1/4"
|
2" |
|
03-120*
|
1/8"
|
5/8"
|
1/4"
|
2" |
|
03-124*
|
3/16 "
|
3/8 "
|
1/4 "
|
1-1/2 " |
|
03-128*
|
3/16 "
|
1/2 "
|
1/4 "
|
2 " |
|
03-132*
|
1/4 "
|
1/2 "
|
1/4 "
|
2 " |
|
03-136*
|
1/4 "
|
3/4 "
|
1/4 "
|
2-1/2 " |
|
03-140*
|
1/4 "
|
1-1/2 "
|
1/4 "
|
2-1/2 " |
|
03-144*
|
1/4 "
|
1 "
|
1/4 "
|
3 " |
|
03-148
|
5/16 "
|
3/4 "
|
1/4 "
|
2-1/2 " |
|
03-152
|
5/16 "
|
1 "
|
1/4 "
|
2-1/2 " |
|
03-156
|
3/8 "
|
1-1/4 "
|
1/4 "
|
2-7/8 " |
|
05-136
|
1/4 "
|
3/4 "
|
3/8 "
|
2-3/4 " |
|
05-160
|
3/8 "
|
1-1/4 "
|
3/8 "
|
2-7/8 " |
|
05-164
|
1/2 "
|
1
|
3/8 "
|
2-1/2 " |
|
11-136
|
1/4 "
|
1/2 "
|
1/2 "
|
2-1/2 " |
|
11-152
|
5/16 "
|
1”
|
1/2 "
|
2-7/8 " |
|
11-158
|
3/8 "
|
1 "
|
1/2 "
|
3 " |
|
11-160
|
3/8 "
|
1-1/4 "
|
1/2 "
|
3 " |
|
11-164
|
1/2 "
|
1 "
|
1/2 "
|
2-7/16 " |
|
11-168
|
1/2 "
|
1-1/4 "
|
1/2 "
|
2-7/8 " |
|
11-172
|
1/2 "
|
1-1/2 "
|
1/2 "
|
3-1/8 " |
|
11-176
|
1/2 "
|
2 "
|
1/2 "
|
4-1/8 " |
|
11-180
|
1/2 "
|
2-1/2 "
|
1/2 "
|
4-3/8 " |
|
11-184
|
9/16 "
|
1-1/4 "
|
1/2 "
|
2-1/2 " |
|
11-188
|
5/8 "
|
1-1/4 "
|
1/2" |
2-3/4”
|
Notes:
* solid Carbine
Red Item Number indicate 1/2" shank
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 11-168 |
