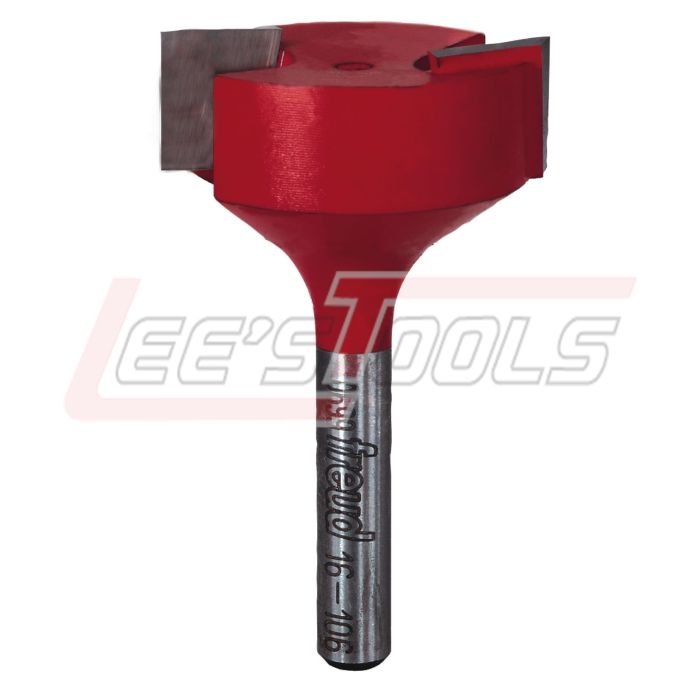

FREUD 16-106 MORTISING BIT
$31.97
In stock
SKU
524821
Mortising
Application: Down shear works to
eliminate splintering ideal for hinges, mortises, and dadoes
•
Freud’s Mortising
Bits are designed with deep center gullets for maximum material removal with out
chip loading.
•
Cuts all composition
materials, ply-woods, hardwoods, and softwoods.
•
Use on CNC and other
automatic routers as well as hand-held and table-mounted portable routers.
Specifications
|
Item #
|
Overall Dia.(D) |
Carbide
Height(h) |
Shank Dia.(A)
|
Overall
Length(H) |
|
16-094**
|
7/32 "
|
1/2 "
|
1/2" |
2-1/4 " |
|
16-096
|
11/32 "
|
1/2 "
|
1/4 "
|
2 " |
|
16-098
|
15/32 "
|
1/2 "
|
1/4 "
|
2 " |
|
16-100
|
1/2 "
|
1/2 "
|
1/4 "
|
2 " |
|
16-102
|
5/8 "
|
1/2 "
|
1/4 "
|
2 " |
|
16-103
|
23/32 "
|
1/2 "
|
1/4 "
|
1-3/4 " |
|
16-104
|
3/4 "
|
1/2 "
|
1/4 "
|
2 " |
|
16-106
|
1-1/4 "
|
29/64 "
|
1/4 "
|
2-1/8 " |
|
16-107**
|
11/32 "
|
1/2 "
|
1/2" |
2-1/4 " |
|
16-108
|
1-1/4 "
|
1/2 "
|
1/2 "
|
2-3/8 " |
|
16-109**
|
15/32 "
|
1/2 "
|
1/2"
|
2-1/4 " |
|
16-110
|
1/2 "
|
1/2 "
|
1/2 "
|
2-3/8 " |
|
16-116**
|
23/32 "
|
3/8 "
|
1/2 "
|
2-1/8 " |
|
16-118
|
3/4 "
|
3/8 "
|
1/2 "
|
2-1/8 " |
|
16-122
|
1 "
|
3/8 "
|
1/2 "
|
2-9/32 " |
|
16-128
|
1-1/2 "
|
5/8 "
|
1/2 "
|
2-17/32 " |
|
16-500
|
1/2 "
|
3/4 "
|
1/4 "
|
2-7/16 " |
|
16-502
|
5/8 "
|
3/4 "
|
1/4 "
|
2-7/16 " |
|
16-504
|
3/4 "
|
3/4 "
|
1/4 "
|
2-7/16 " |
|
16-510
|
3/4 "
|
3/8 "
|
1/4 "
|
2-3/32 " |
|
16-520
|
3/4 "
|
3/8 "
|
1/2 "
|
2-3/32 " |
|
16-522
|
1-1/4 "
|
15/64 "
|
1/2 "
|
2 " |
|
16-523
|
1-1/4 "
|
1/2 "
|
1/2 "
|
2-1/4 " |
|
16-524
|
1-1/4 "
|
5/8 "
|
1/2 "
|
2-3/8 " |
|
16-528
|
1-1/2 "
|
5/8 "
|
1/2 "
|
2-1/2 " |
|
16-560*
|
1/2 "
|
5/16 "
|
1/4 "
|
2-716” |
Notes:
*overall bearing diameter is 5/8”
** Downshear bits for routing ply-wood grooves
Red item numbers indicate 1/2"
shank
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 16-106 |
