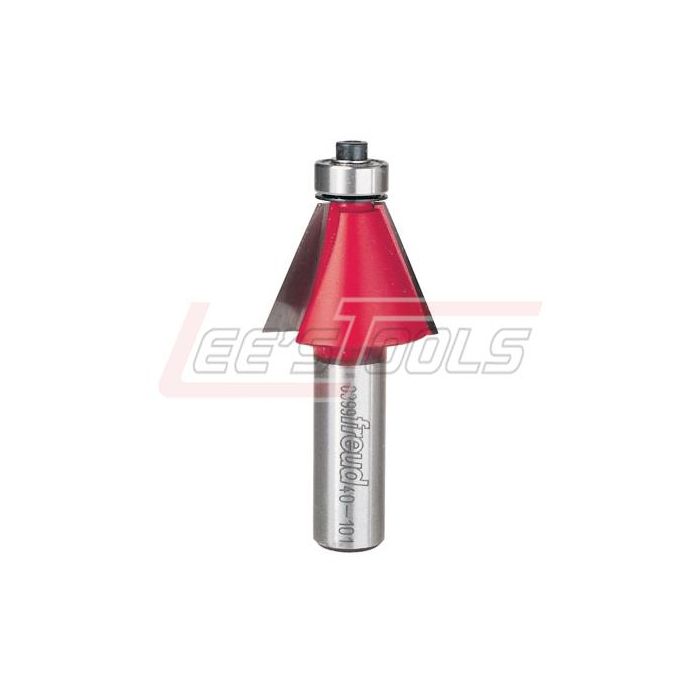

FREUD 40-101 CHAMFER BIT
$38.97
In stock
SKU
525086
Chamfer Bits
Application: For multiple-sided projects,
joinery, and easing edges
Creates a uniform chamfer on the edge of any work piece to
add character, while retaining crisp geometric lines.
•
#40-094 makes 16-sided pieces and #40-098 makes
12-sided pieces.
•
Chamfer size easily adjusts by changing the
height of the bit.
•
Cuts all composition materials, plywoods,
hardwoods, and softwoods.
•
Use on hand-held and table-mounted portable
routers.
Key Specifications
|
Item # |
Overall Dia.(D) |
Bearing Dia.(B) |
Carbide Height(h) |
Angle (d) |
Shank Dia.(A) |
Overall Length(H) |
|
40-094 |
7/8" |
1/2" |
1" |
11-1/4° |
1/2" |
2-3/4" |
|
40-098 |
1" |
1/2" |
1" |
15° |
1/2" |
2-7/8" |
|
40-100 |
23/32" |
1/2" |
1/2" |
15° |
1/4" |
2-3/16" |
|
40-101 |
1-1/4" |
1/2" |
7/8" |
22-1/2° |
1/2" |
2-5/8" |
|
40-102 |
15/16" |
1/2" |
1/2" |
25° |
1/4" |
2-3/16" |
|
40-104 |
1-11/32" |
1/2" |
1/2" |
45° |
1/4" |
2-3/16" |
|
40-106 |
1-3/4" |
1/2" |
5/8" |
45° |
1/4" |
2-3/16" |
|
40-114 |
1-3/4" |
1/2" |
5/8" |
45° |
1/2" |
2-9/16" |
|
40-118 |
2-1/2" |
1/2" |
1" |
45° |
1/2" |
2-7/8" |
|
40-202 |
1-11/32" |
1/2" |
3/4" |
30° |
1/4" |
2-1/4" |
|
40-206 |
1-11/32" |
1/2" |
3/4" |
30° |
1/2" |
2-3/4" |
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 40-101 |
