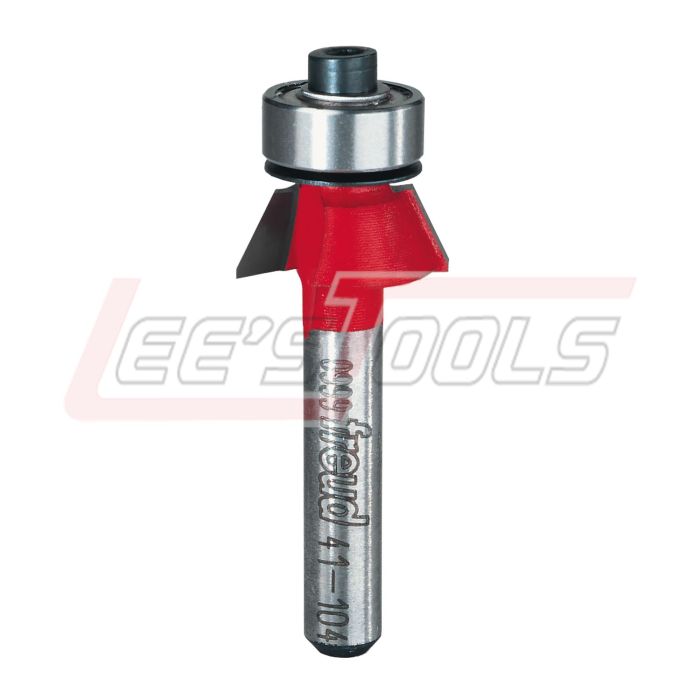

FREUD 41-104 TWO FLUTE BEVEL TRIM BIT
$32.97
In stock
SKU
525095
Bevel Trim Bits
Application Cutting bevels inplastic laminates for a clean, finished edge
• The 41 Series Bits provide arange of bevels from 8 degrees to 45 degrees and feature a ball bearing guide.
• The 66-100 solid carbide bit createsa 7-degree bevel and includes a self-piloting feature that eliminates the expense and upkeep of a ballbearing assembly.
• Cuts all plastic laminates.
• Use on Hand-held routers,table-mounted portable routers, and laminate trimmers for trimming plasticlaminate.
Key Specifications
| Item # | Overall Dia.(D) | Bearing Dia.(B) | Carbide Height(h) | Angle (d) | Shank Dia.(A) | Overall Length(H) |
| 41-102 | 19/32" | 1/2" | 9/32" | 15° | 1/4" | 1-7/8" |
| 41-104 | 19/32" | 1/2" | 9/32" | 25° | 1/4" | 1-7/8" |
| 41-106 | 31/32" | 1/2" | 1/4" | 45° | 1/4" | 1-7/8" |
| 41-108 | 25/32" | 3/8" | 29/64" | 25° | 1/4" | 1-15/16" |
| 41-110 | 9/16" | 1/2" | 13/32" | 8° | 1/4" | 2" |
| 66-100* | 1/4" | 3/16" | 1/4" | 7° | 1/4" | 1-1/2" |
| 66-100A* | 1/4" | 3/16" | 1/4" | 7° | 1/4" | 1-1/2" |
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 41-104 |
