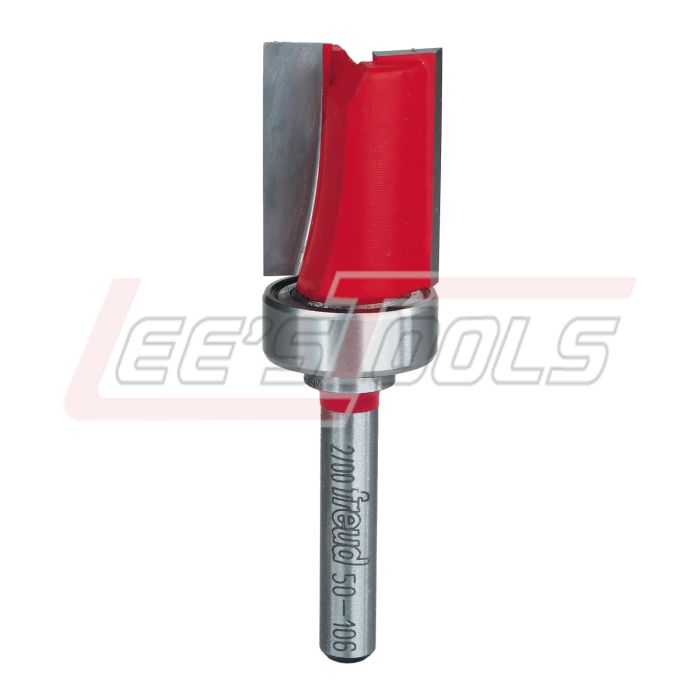

FREUD 50-106 TOP BEARING FLUSH TRIM BIT
$30.97
In stock
SKU
525138
Top Bearing Flush Trim Bits
Application:
Template work and lettering
• The top mounted bearings on these bits make them
ideal for lettering and other template
work here
the work piece is being grooved or routed out.
• Cuts all composition materials, ply-woods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.
Key Specifications
|
Item # |
Overall Dia.(D) |
Bearing Dia. (B) |
Carbide Height(h) |
Shank Dia.(A) |
Overall Length(H) |
|
50-098*
|
5/16"
|
1/2"
|
1"
|
1/4"
|
2-23/32" |
|
50-101
|
1/2"
|
1/2"
|
1-1/4"
|
1/4"
|
2-1/2" |
|
50-102
|
1/2"
|
1/2"
|
1"
|
1/4"
|
2-5/8" |
|
50-103
|
5/8"
|
5/8"
|
9/16"
|
1/4"
|
2-1/4" |
|
50-104
|
5/8"
|
5/8"
|
1"
|
1/4"
|
2-5/8" |
|
50-105
|
9/16"
|
9/16"
|
3/4"
|
1/4"
|
2-5/16" |
|
50-106
|
3/4"
|
3/4"
|
1"
|
1/4"
|
2-5/8" |
|
50-107*
|
9/16"
|
5/8"
|
9/16"
|
1/4"
|
2-5/16" |
|
50-110
|
7/8"
|
7/8"
|
1"
|
1/2"
|
2-13/16" |
|
50-112
|
1"
|
1"
|
1"
|
1/2"
|
2-3/4" |
|
50-116
|
3/4"
|
3/4"
|
1"
|
1/2"
|
2-13/16" |
|
50-118
|
3/4"
|
3/4"
|
1-3/4"
|
1/2"
|
3-1/2" |
|
50-122
|
1-1/8"
|
1-1/8"
|
1-1/2"
|
1/2"
|
3-3/8" |
|
50-126
|
1-1/4"
|
1-1/4"
|
1-1/2"
|
1/2"
|
3-3/8" |
|
50-130
|
1-1/2"
|
1-1/2"
|
1-3/4"
|
1/2"
|
3-3/4" |
|
50-138
|
2"
|
2"
|
2"
|
1/2"
|
4" |
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 50-106 |
