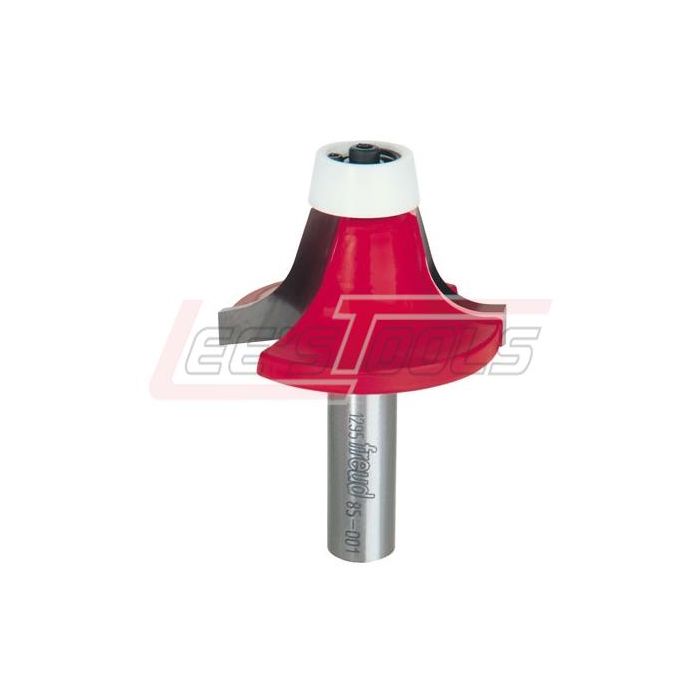

FREUD 85-001 ROUND OVER BOWL BIT
$89.97
In stock
SKU
525426
Round Over Bowl Bits
Application: Trimming joint
between solid surface countertops and solid surface sink bowls with a smooth,
rounded edge
•
Specially formulated carbide is ideal for
fabricating solid surface materials.
•
Features non-marring synthetic bearing to protect
finished edges.
•
Cuts all solid surface materials.
•
Use in hand-held portable routers.
Key Specifications
|
Item # |
For Top Thickness |
Overall Dia.(D) |
Carbide Height(h) |
Large Radius(R) |
Angle (d) |
Shank Dia.(A) |
Overall Length(H) |
|
85-001 |
3/4" |
2" |
1" |
1/2" |
15° |
1/2" |
2-7/8" |
|
85-003 |
1" |
2" |
1-1/4" |
1/2" |
15° |
1/2" |
3-1/8" |
|
85-140 |
1/2" |
2-1/8" |
1" |
1/2" |
20° |
1/2" |
2-13/16" |
|
85-145 |
3/4" |
2-1/4" |
1-1/4" |
1/2" |
20° |
1/2" |
3-21/64" |
|
85-150 |
1/2" |
2-1/8" |
7/8" |
3/8" |
10° |
1/2" |
2-3/4" |
|
85-152 |
1/2" |
2-1/8" |
7/8" |
3/8" |
13° |
1/2" |
2-51/64" |
|
85-155 |
1/2" |
2-1/4" |
7/8" |
1/2" |
10° |
1/2" |
2-51/64" |
|
85-157 |
1/2" |
2-3/8" |
7/8" |
1/2" |
13° |
1/2" |
2-51/64" |
|
85-160 |
3/4" |
2-1/2" |
1-1/8" |
1/2" |
10° |
1/2" |
3-3/64" |
|
85-161 |
3/4" |
2-1/2" |
1-1/8" |
1/2" |
13° |
1/2" |
3-3/64" |
|
85-164 |
3/4" |
2-1/2" |
1-1/8" |
3/4" |
13° |
1/2" |
3-3/64" |
|
85-165 |
3/4" |
2-9/16" |
1-1/4" |
3/4" |
10° |
1/2" |
3-1/8" |
|
85-166 |
1" |
2-5/8" |
1-1/4" |
1/2" |
10° |
1/2" |
3-1/4" |
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 85-001 |
