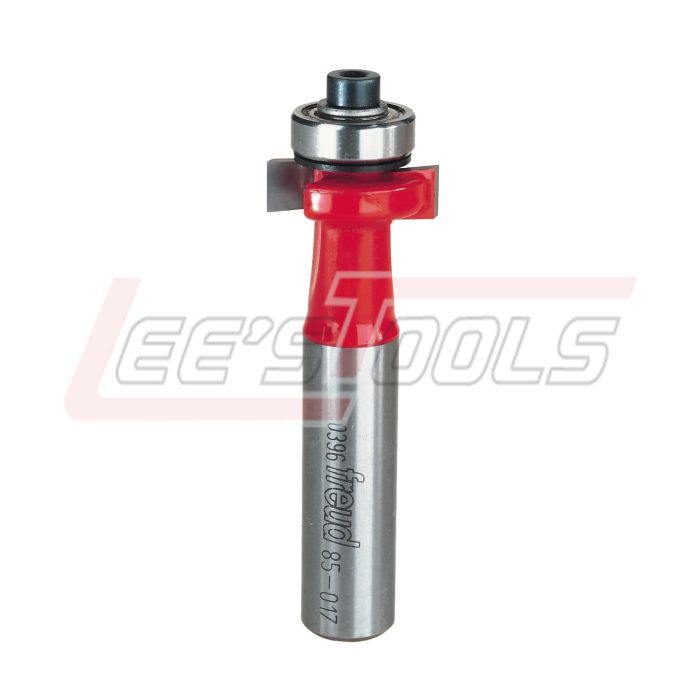

FREUD 85-017 INLAY BIT
$49.97
In stock
SKU
525434
Inlay Bits
Application: Decorative inlay work in solid surface countertops
•
Specially formulated
carbide is ideal for fabricating solid surface materials.
•
Cuts all solid surface
materials.
•
Use on hand-held portable
routers.
Key specifications
|
Item # |
Overall Dia.(D) |
Cut Depth© |
Bearing Dia. (B) |
Carbide Height(h) |
Shank Length(L) |
Shank Dia.(A) |
Overall Length(H) |
|
85-015
|
7/8"
|
1/16"
|
3/4"
|
1/4"
|
1-5/8"
|
1/2"
|
2-13/16" |
|
85-017
|
7/8"
|
1/8"
|
5/8"
|
1/4"
|
1-5/8"
|
1/2"
|
2-13/16" |
|
85-019
|
7/8"
|
3/16"
|
1/2"
|
1/4"
|
1-5/8"
|
1/2"
|
2-13/16" |
|
85-021
|
7/8"
|
1/16"
|
3/4"
|
1/2"
|
1-5/8"
|
1/2"
|
3-1/16" |
|
85-023
|
7/8"
|
1/8"
|
5/8"
|
1/2"
|
1-5/8"
|
1/2"
|
3-1/16" |
|
85-025
|
7/8"
|
3/16"
|
1/2"
|
1/2"
|
1-5/8"
|
1/2"
|
3-1/16" |
|
85-027
|
7/8"
|
1/16"
|
3/4"
|
3/4"
|
1-5/8"
|
1/2"
|
3-5/16" |
|
85-029
|
7/8"
|
1/8"
|
5/8"
|
3/4"
|
1-5/8"
|
1/2"
|
3-5/16" |
|
85-031
|
7/8"
|
3/16"
|
1/2"
|
3/4"
|
1-5/8"
|
1/2"
|
3-5/16" |
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 85-017 |
