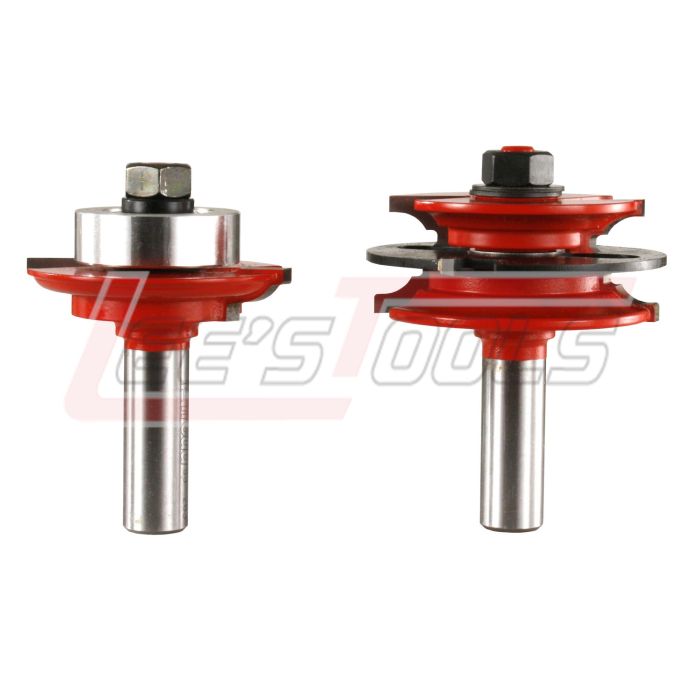

FREUD 99-283 RECOVERY BEAD STILE & RAIL BIT
$179.97
Out of stock
SKU
525656
Recoverable Bead Glass Door
Bit Sets
Application: Creates glass doors that look equally good from
the front and back
•
Each bit produces a unique
profile on the front of the door and a matching profile on the back that can be
removed with a 1/8" kerf saw blade, then miter cut to make a bead to secure the
glass panel.
•
99-281 produces an ogee
profile, 99-280 produces a quarter round profile, and 99-283 produces a beaded
profile.
•
Cuts all composition
materials, plywoods, hardwoods, and softwoods.
•
Use on table-mounted
portable routers.
Key specifications
|
Item # |
Overall Dia.(D) |
Bearing Dia. (B) |
Carbide Height(h) |
Minor Height(m) |
Large Radius(R) |
Shank Dia.(A) |
Overall Length(H) |
|
99-280
|
2-3/8"
|
1-1/4"
|
7/8"
|
1/8"
|
7/32"
|
1/2"
|
3" |
|
99-281
|
2-3/8"
|
1-1/4"
|
7/8"
|
1/8"
|
7/32"
|
1/2"
|
3" |
|
99-283
|
2-3/8"
|
1-1/4"
|
7/8"
|
1/8” |
15/64”
|
1/2" |
3” |
| Availability | Out of Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 99-283 |
