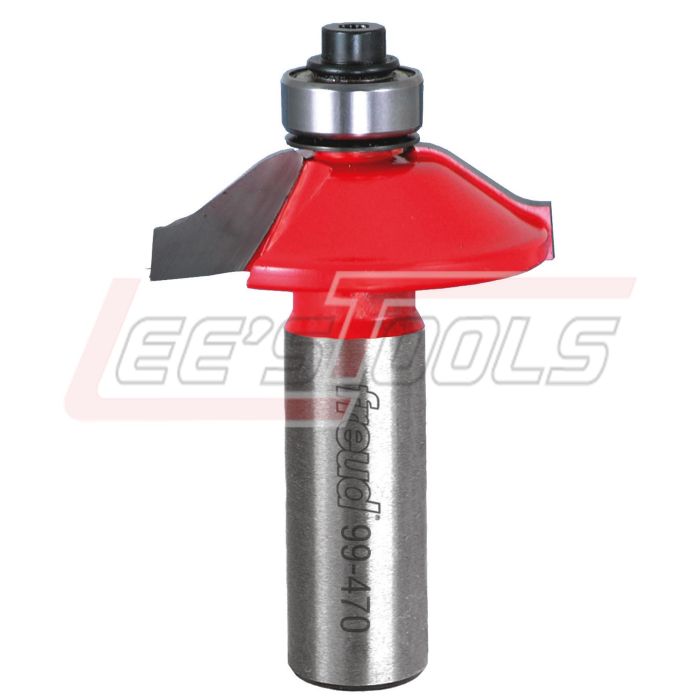

FREUD 99-470 REVERSIBLE WAINSCOTINGS BIT
$49.97
In stock
SKU
525688
Reversible Wainscoting Bit
Application : For milling matching joint s in wainscoting
•
Works with stock from 1/2"
to 5/8" thick, and mills matching frame joints with remarkable ease and
precision.
•
Bit height is set one time
for male and female joints without requiring fence or height adjustments. Just
rout stiles face down and rails face up for a perfect fit.
•
Versatile design—after
routing the matching profiles, rout a rabbet on the back to accept the tongue of
a raised panel in 3/4" stock.
•
Cuts all composition
materials, plywoods, hardwoods and softwoods.
•
Use on hand-held and
table-mounted portable routers.
Key Specifications
|
Item #
|
Overall Dia.(D)
|
Bearing Dia. (B)
|
Carbide Height(h)
|
Large Radius(R)
|
Minor Height(m)
|
Shank Dia.(A)
|
Overall Length(H) |
|
99-470
|
1-1/2"
|
1/2"
|
7/16"
|
1/4"
|
3/16"
|
1/2"
|
2-1/4" |
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 99-470 |
