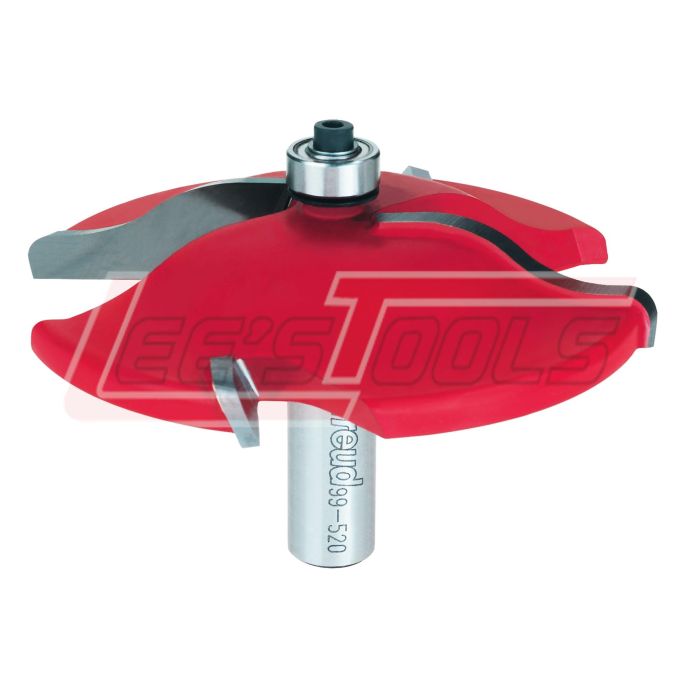

FREUD 99-520 2+2 3-1/2 RAISED PANEL BIT
$109.97
In stock
SKU
525705
Quadra-Cut
Raised Panel Bits
Application: Ideal for creating raised panels fordoors and
paneling, as well as decorative tops, plaques and molding
•
Revolutionary
Quadra-Cut„¢design combines two small wingsthat cut downward to shear the top
edge for a splinter-free surface, and twolarge wings that shear upward for a
smooth finish.
•
Use 1/2" height for 5/8"
stock. Use 5/8"height for 3/4" stock.
•
Cuts all composition
materials, plywoods, hardwoods, andsoftwoods.
•
Use on table-mounted
portable routers.
Key specifications
*Angle=110° U.S. Patent No. 5,899,252
|
Item # |
Overall Dia.(D) |
Small Dia.(n) |
Carbide Height(h) |
Minor Height(m) |
Large Radiu(R1) |
Small Radius(R2) |
Shank Dia.(A) |
Overall Length(H) |
|
99-510
|
2-3/4"
|
-
|
5/8"
|
7/32"
|
35/64"
|
1/8"
|
1/2"
|
2-1/2" |
|
99-511
|
2-3/4"
|
1-1/8"
|
5/8"
|
15/64"
|
- |
-
|
1/2"
|
2-1/2" |
|
99-512
|
2-3/4"
|
1-1/4"
|
5/8"
|
17/64"
|
13/64"
|
- |
1/2"
|
2-1/2" |
|
99-513*
|
2-3/4"
|
- |
5/8"
|
15/64"
|
7/16"
|
- |
1/2"
|
2-1/2" |
|
99-515
|
3-1/2"
|
1-1/4"
|
5/8"
|
5/32"
|
-
|
- |
1/2"
|
2-1/2" |
|
99-516
|
3-1/2"
|
1-1/4"
|
1/2"
|
5/32"
|
-
|
-
|
1/2"
|
2-1/2" |
|
99-518
|
3-1/2"
|
-
|
5/8"
|
5/64"
|
1-1/2"
|
- |
1/2"
|
2-1/2" |
|
99-519
|
3-1/2"
|
-
|
1/2"
|
5/64"
|
1-1/2"
|
-
|
1/2"
|
2-1/2" |
|
99-520
|
3-1/2"
|
- |
5/8"
|
7/32"
|
25/32"
|
5/32"
|
1/2"
|
2-1/2" |
|
99-521
|
3-1/2"
|
- |
1/2"
|
-
|
1-3/16"
|
5/32"
|
1/2"
|
2-1/2" |
|
99-522
|
3-1/2"
|
1-1/4"
|
5/8"
|
- |
15/64"
|
- |
1/2"
|
2-1/2" |
|
99-523
|
3-1/2"
|
1-1/4"
|
1/2"
|
-
|
5/32"
|
-
|
1/2"
|
2-1/2" |
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 99-520 |
