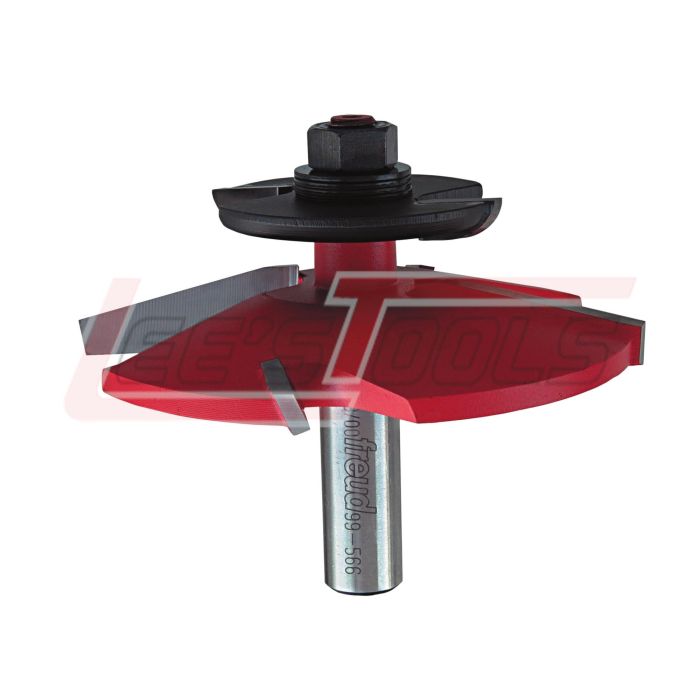

FREUD 99-566 3-1/2 RAISED PANEL & BACKCUTTER
$124.97
In stock
SKU
525709
Quadra-Cut„¢ Raised Panel
Bits with Backcutters
Application: Producing panels from 3/4" stockthat are flush
with the doorframe for a professional, architecturally correct appearance
•
Exclusive Quadra-Cut„¢
design combines a backcutter withthe smooth cuts of Freud''s 2+2 Raised Panel
Bits.
•
Shims are included to allow
adjustment of tongue thicknessfrom 7/32" to 1/4" for maximum versatility and
compatibility.
•
Patented design allows
these bits to produce a full1-1/2" wide reveal for traditional raised panel
doors.
•
Included 54-562 radius
backcutter gives double-sidedappearance and can be replaced with optional
•
54-560 squarebackcutter for
a more contemporary look.
•
Cuts all composition
materials, plywoods, hardwoods, andsoftwoods.
•
Use on table-mounted
portable routers.
Key specifications
|
Item # |
Overall Dia.(D) |
Carbide Height(h) |
Minor Height(m) |
Large Radiu(R1) |
Small Radius(R2) |
Shank Dia.(A) |
Overall Length(H) |
|
99-500
|
2-19/32"
|
7/8"
|
5/32” |
3/4"
|
7/64"
|
1/2"
|
2-51/64" |
|
99-566
|
3-1/2"
|
1"
|
5/32"
|
€“
|
3/16"
|
1/2"
|
3" |
|
99-569
|
3-1/2"
|
1"
|
5/32"
|
1-1/2"
|
3/16"
|
1/2"
|
3" |
|
99-571
|
3-1/2"
|
1"
|
5/32” |
1-3/16"
|
5/32"
|
1/2"
|
3" |
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 99-566 |
