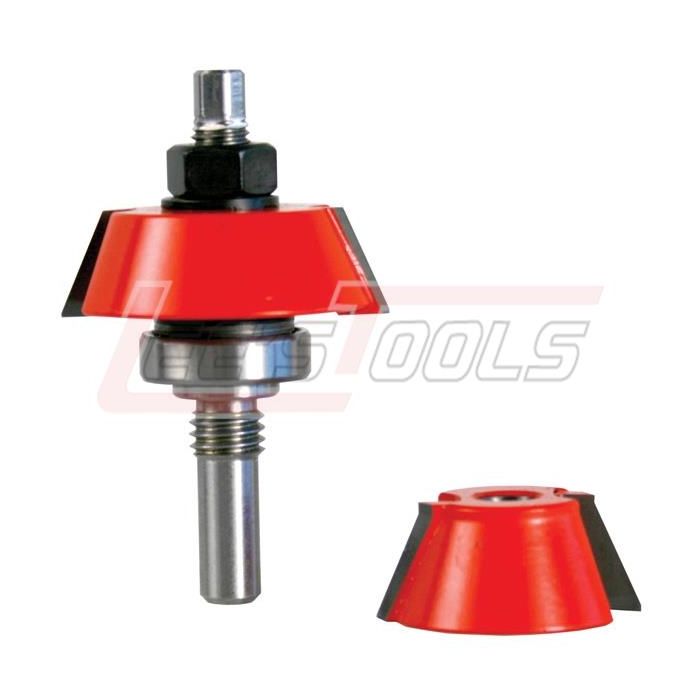

FREUD 99-862 SHAKER DOUBLE PROF
$112.97
In stock
SKU
1468199
Premier Adjustable Rail & Stile Bits
Application: Produces perfect fitting rail andstile doors from 5/8" to 1-1/4" stock
Now with Freud´s unique, patented Premier Adjustable Railand Stile Router Bit system, you are able to build any style of cabinet door ina range of door thicknesses and sizes! This extremely easy-to-use solutiongives you unlimited creative freedom, and solves the long-standing challengesand limitations of frame and panel door construction.
Our new Rail & Stile system is the FIRST & ONLYsolution on the market that allows you to:
1. Create extended tenons for extra door joint strength(patented solution)
2. Adjust groove width for different panel thicknesses
3. Choose from a variety of material thicknesses (5/8"to 1-1/4")
4. Add optional cutter to create glass or screen doors
5. Add optional cutters to create double sided profiles inthicker stock material
Features:
• Adjustable shims adjust panel groove down to7/32"(5.5mm) and up to 3/8" (9.5mm) thick, ideal for plywood panels.
• Unique cutter geometry to eliminate tear-out.
• Patented Extended Tenon Capability - Top portion ofcutter, including bearing and spindle, is removed to produce the front of thelong tenon profile.
• TiCo„¢ Hi-Density Carbide to maximize bit life and materialfinish.
• Perma-SHIELD® coating reduces heat & pitch build-upfrom rust
Key specifications
| Item # | Profile | Overall Dia.(D) | Carbide Height(h) | Minor Height(m) | Large Radius(R) | Shank Dia.(A) | Overall Length(H) |
| 99-860 | Round Over (add-on double sided cutter) | 1-11/16" | 9/16" | 15/64" | 7/32" | - | - |
| 99-861 | Ogee (add-on double sided cutter) | 1-11/16" | 9/16" | 15/64" | 13/64" | - | - |
| 99-862 | Shaker (Bevel) (add-on double sided cutter) | 1-11/16" | 9/16" | 15/64" | - | - | - |
| 99-863 | Round Over Bead (add-on double sided cutter) | 1-11/16" | 9/16" | 15/64" | 9/32" | - | - |
| 99-864 | Bevel(add-on double sided cutter) | 1-11/16" | 9/16" | 15/64" | 9/32" | - | - |
| 54-760 | Add-on cutter for glass/screen panel doors | 1-11/16" | 1/2" | - | - | - | - |
| Availability | In Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | 99-862 |
