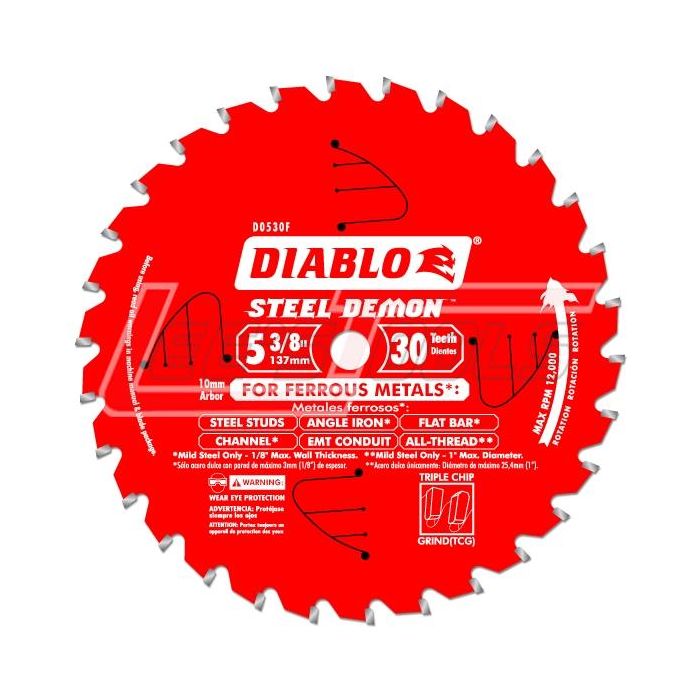

FREUD D0530F 5 3/8"X30 FERROUS METAL
$0.00
Out of stock
SKU
526034
For Cutting FerrousMetals (Mild Steel Only) Steel Studs, Angle Iron, Flat Bar, EMT Conduit,All-Thread
Steel Demon® Ferrous Metals
Ideal for cutting steel studs, steelsheet, steel pipe and other mild steel sections.
New Steel Demon® blades efficiently cut through ferrousmetals quickly and accurately leaving clean, burr free cuts. These bladesfeature teeth with Triple Chip Grind (TCG) and a special carbide blend withoutstanding resistance to the high impact generated by steel cutting. Freud€™sexpanded Steel Demon range includes blades for all popular low RPM metalcutting saws as well as conventional 6-1/2€ and 7-1/4€ portable circular saws.(note that all blades are for mild steel only. Most blades are for steel 1/8€thick or less, except for the D0738F, D0738FM, D1260F and D1472F which areideal for steel with a wall thickness of 1/4€ or less.)
Key Specifications
| Item# | Diameter | Machine Use | Application | Teeth | Arbor | Kerf | Hook Angle |
| D0530F | 5-3/8" (137mm) | Circular Saws | Ferrous Metals | 30 TCG | 10mm | .059" | 2º |
| D0530FM | 5-3/8" (137mm) | For Panasonic® & Similar Metal Cutting Saws | Ferrous Metals | 30 TCG | 20mm | .059" | 2º |
| D0648F | 6-1/2" (165mm) | Circular Saws | Ferrous Metals | 48 TCG | 5/8" | .071" | 2º |
| D0649F | 6-3/4" (172mm) | Circular Saws | Ferrous Metals | 48 TCG | 20mm | .071" | 2º |
| D0738FM | 7" (180mm) | For Evolution®, Jancy®, Morse®,& Similar Metal Cutting Saws | Ferrous Metals | 38 TCG | 20mm | .102" | 2º |
| D0738F | 7-1/4" (182mm) | Circular Saws | Ferrous Metals | 38 TCG | 5/8" | .102" | 2º |
| D0748F | 7-1/4" (182mm) | Circular Saws | Ferrous Metals | 48 TCG | 5/8" | .102 | 2º |
| D0748FM | 7" (180mm) | For Evolution®, Jancy®, Morse®,& Similar Metal Cutting Saws | Ferrous Metals | 48 TCG | 20mm | .102" | 2º |
| Item # | Outside Dia.(D) | Inside Dia.(d) | Overall Length(L) | Rotation | Angle (A) | Shank Dia. | Shank Length(T) |
| 6020L | 19.5mm | 10mm | 46mm | Left | 30° | M10 | 12mm |
| 6020R | 19.5mm | 10mm | 46mm | Right | 30° | M10 | 12mm |
| 6025L | 19.5mm | 10mm | 51mm | Left | 20.8° | M8 | 12mm |
| 6025R | 19.5mm | 10mm | 51mm | Right | 20.8° | M8 | 12mm |
| Availability | Out of Stock |
|---|---|
| Manufacturer | FREUD |
| Manufacturer Sku | D0530F |
