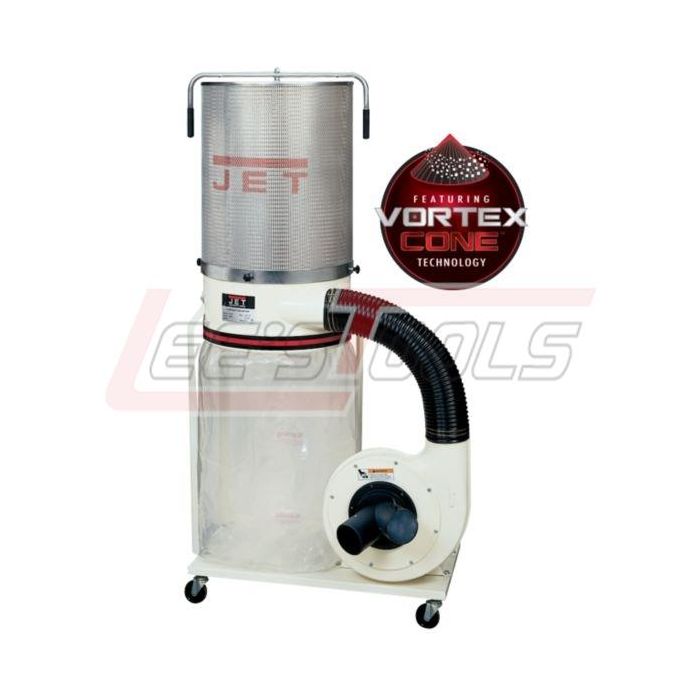

JET TOOLS 708659K DC-1100VX-CK Dust Collector, 1.5HP 1PH 115/230V, 2-Micron Canister Kit -LTL
$999.99
In stock
SKU
1522582
DC-1100VX-CK Dust Collector, 1.5HP 1PH 115/230V, 2-Micron Canister Kit
The JET DC-1100VX features the exclusive Vortex Cone™ which
improves chip separation to prevent clogging of the filter, and increases
packing efficiency of the collector bag. The high air velocity (CFM) stands up
to any competitive specifications, and the industrial controls are designed for
years of durable use. Collection bags have a snap ring for fast installation and
removal. Casters offer maneuverability within the shop.
Details
·
Vortex Cone improves chip separation and
collector bag packing efficiency
·
Eliminates premature filter clogging for
sustained performance
·
Single-stage design for economical and quiet
operation
·
Industrial controls designed for years of
trouble-free use
·
Quick-connect collection bags with elastic band
for fast, easy installation and removal
·
High air velocity (CFM) design stands up to any
competitive specifications
·
Permanently lubricated, totally enclosed,
fan-cooled motors are rated for continuous-duty
·
Includes four casters for maneuverability and
total portability
Specifications
|
Model Number |
DC-1100VX-CK |
|
Brand |
Jet |
|
Trademark |
Vortex
Cone |
|
Overall Dimensions |
37 x 22.5 x
39 (shipped), 37 x 22.5 x 72 (assembled) |
|
Height |
39 inch |
|
Width |
22.5 inch |
|
Length |
37 inch |
|
Net Weight |
159 pound |
|
Gross Weight |
172 pound |
|
Remote Control |
n.a. |
|
Sound Rating |
70 - 80 dB |
|
1-Hose Connection Diameter |
6 " |
|
2-Hoses Connection Diameter |
4 " |
|
Bag Diameter |
20 " |
|
Filter Bag/Canister Length |
25" |
|
Collection Bag Capacity |
5.3 cubic
foot |
|
Collection Bag Length |
29 " |
|
Air Flow @ 4" |
1,100 cu.ft/min |
|
Static Pressure |
10½ inch of
water |
|
Particle Size (Micron) |
98% of 2
micron particles: 86% of 1 micron particles |
|
Velocity @ 4" |
8,464 foot
per minute |
|
Air Inlet |
(1) at 6"
or (2) at 4" |
|
Impeller Diameter |
11 " |
|
Impeller Material |
steel |
|
Separator Tank Diameter |
20 " |
|
Separator Tank Height |
10 " |
|
Motor Power |
1½ HP |
|
Motor Phase |
1 Ph |
|
Motor Voltage |
115 / 230
V |
|
Prewired Voltage |
115 V |
|
Motor Current |
11 / 5.5 A |
| Availability | In Stock |
|---|---|
| Manufacturer | JET TOOLS |
| Manufacturer Sku | 708659K |
