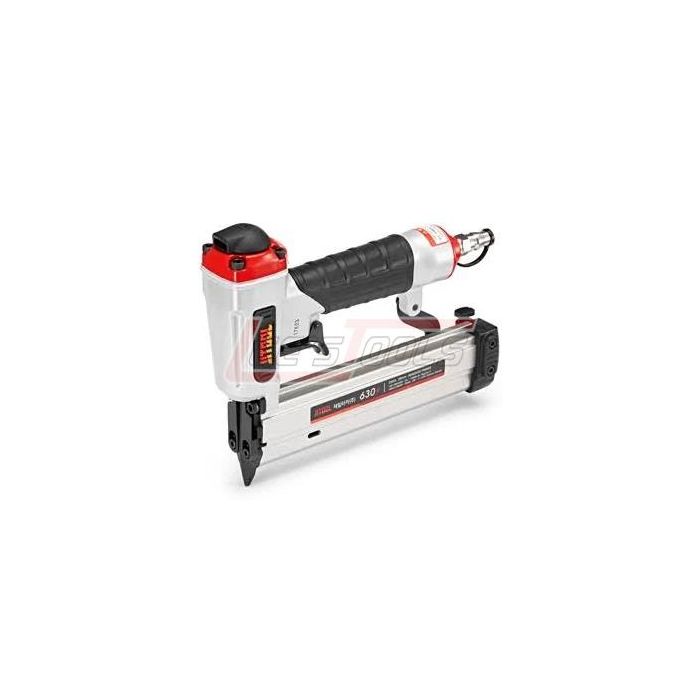

JITOOL 630R 23GA. 1-3/16" Micro Pinner

Product Information

Compatibility with other companies

-          MAX : NF235A/23-35 Series

-          BOSTITCH : HP118K/PT1312 Series

-          SENCO : FinishPro 11/CZ Series

Model Code

-          630

-          Headless Pinner

 Feature

-          Compact and Lightweight

-          Side-Loading Magazine

-          Die-Cast Aluminum

-          Fast-Quick Trigger-Light Recoil

-          Rubber Comfort Grip

 Applications

-          Molding & Decorative

-          Trim

-          Glazing Strips & Window Beading

-          Dowel & Join Pinning

-          Rattan Furniture

-          Mirror & Picture Frame Assembly

 Specification

-          Pin Capacity 200 Pins

-          Weight 2.26lb(1.03Kg)

-          Dimensions:   H : 7"(178mm) / L : 9 1/4"(235mm) / W : 1 3/4"(44mm)

-          Use Pin Type

-          23GA. Headless Pinner (10-18mm)

-          Available Pin Name 615, 618, 622, 625, 630

-          Available pressure 4.0kg. f/cm - 7.0kg. f/cm
