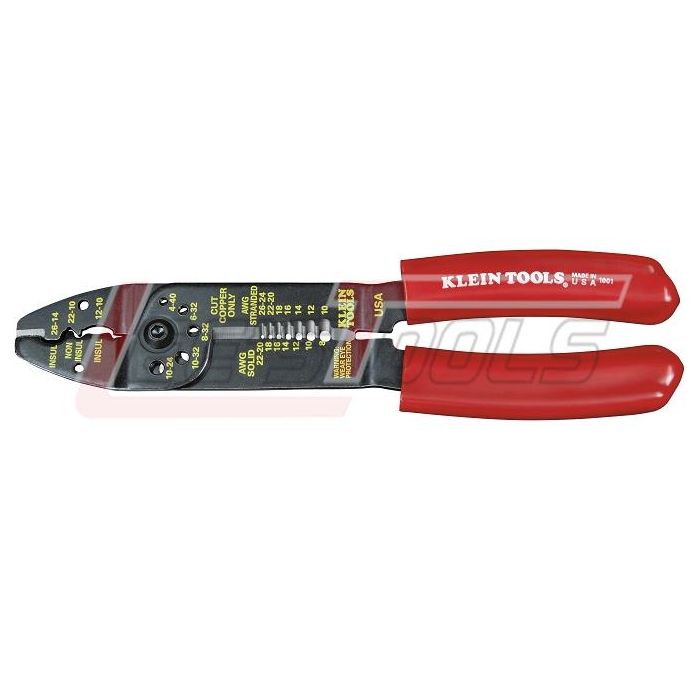

KLEIN 1001 Multi-Purpose Electricians Tool 8-22 AWG
$26.99
In stock
SKU
684762
MULTI-PURPOSE ELECTRICIAN'S TOOL – 8-22 AWG
Two wire cutters—one at tip, the other halfway back near
stripping holes—double the utility of this tool. Crimps 7-8 mm insulated and
non-insulated terminals, lugs and splices. Cuts and strips 8-22 AWG solid and
10-26 AWG stranded wire. Cleanly shears bolts. Pivot nut adjusts tension. Left-
and right-hand wire-looping holes near tip. Full-sized, plastic-covered
cushioned handles for comfort. Wire cutter in nose and below pivot. Crimping
dies color-coded for easy identification.
Specifications:
|
Cat. No. |
Bolt Size |
Handle Color |
Overall Length |
Strips and Cuts |
Weight (lbs.) |
|
1001 |
4-40, 6-32, 8-32, 10-24, 10-32 |
Red |
8-1/2" (216) |
10 - 26 AWG stranded (4.0 - .14 mm²) & 8 - 22 AWG solid (6.0 - .34
mm²) |
.47 |
All dimensions are in
inches and (millimeters) except where indicated.
Warning:
·
Always wear approved eye
protection.
·
NOT insulated.
Plastic-dipped or slip-on plastic handles are NOT intended for protection
against electrical shock.
| Availability | In Stock |
|---|---|
| Manufacturer | KLEIN |
| Manufacturer Sku | 1001 |
