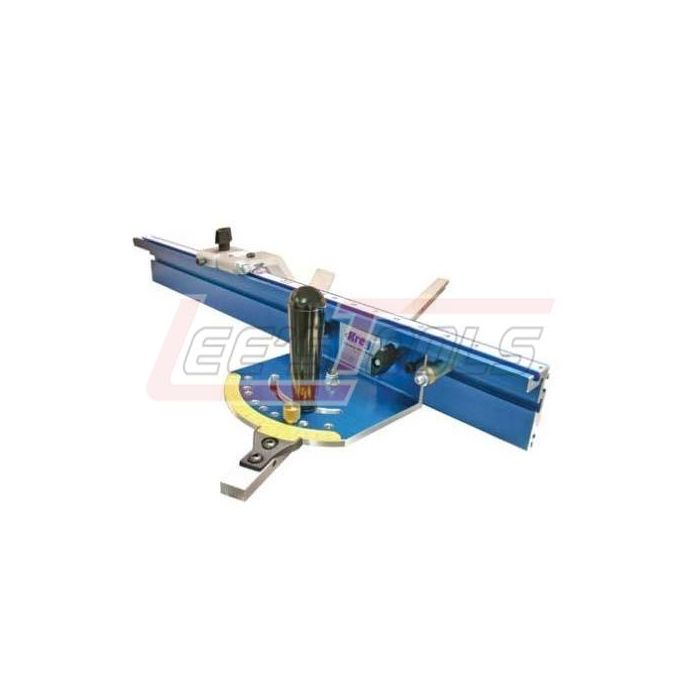

KREG TOOL KMS7102 Kreg Precision Miter Gauge System

 Features:

·         Factory calibrated... perfect right out of the box

·         Positive stops at 0, 10, 22-1/2, 30, and 45 degrees

·         Brass pin allows quick changes between positive stop angles

·         24" bar with 5 bar adjusters eliminates the play between the bar and the miter slot

·         24" Fence section with patented Swing Stop

·         Patented

Specifications

·         Fence:

          24” aircraft grade aluminum fence

·         T-Slot bar:

          24” long, 3/8” tall x 3/4” wide

·         Positive Stops at:

          0, 10, 22-1/2, 30 & 45 degrees

·         Vernier Scale:

          Adjusts to 1/10th degree

·         Finish:

          Anodized for easy clean-up

·         Calibration:

          Factory calibrated right out of the box

·         Weight:

          6.5 lbs.

Why spend your time calibrating a miter gauge when you can get factory-milled accuracy right out of the box? Our Precision Miter Gauge System requires no calibrating, and features positive stops at 0, 10, 22-1/2, 30 and 45 degrees to make it easy to cut perfect miters quickly. Of course, when you do want to cut a more complicated angle, the easy to- use Vernier scale allows for fast adjustments to 1/10th of a degree.

Perfect Miters, Fast!

Precision is the name of the game for this CNC milled miter gauge. We worked hard to build accuracy into every feature of this product from the rugged aluminum fence, to the solid, yet versatile Swing Stop™, to the easy-to-adjust Vernier scale. Bottom line, this miter gauge will put your projects on the fast track to perfection!

Precision Lens Cursor

Similar to the type of lens found on a quality table saw rip fence, the clear lens features a high-visibililty red line that makes it easy to set the Swing Stop™ for precise cuts, time after time.

No Play in the Miter Slot

Our extremely straight 24” anodized aluminum bar is 3/8” tall by 3/4” wide and features five bar adjusters that eliminate “play” in the miter slot with the turn of a screw driver.

Swing Stop

The Swing Stop™ slides effortlessly along the fence of the Precision Miter Gauge and locks securely into place with the simple turn of a knob. It also features a patented curved foot that lifts out of the way when you slide a board into it, so squaring an end and cutting to length doesn’t require moving the stop.

Add a Sacrificial Fence

The curved foot of the Swing Stop’s “break-away” design allows you to add a sacrificial fence to your Miter Gauge.
