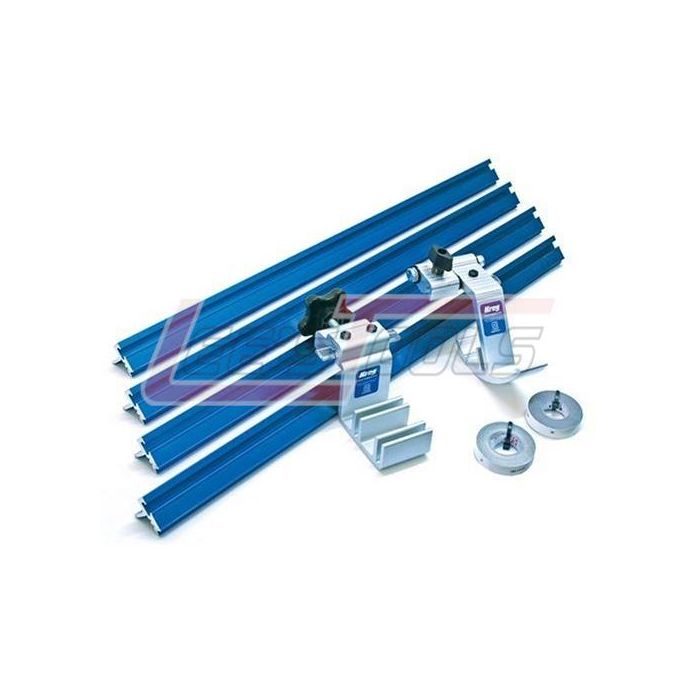

KREG TOOL KMS8000 Kreg Precision Trak & Stop System

Features

·         (4) 2' pieces of Top Trak

·         1 Swing Stop

·         1 Production Stop

·         12' L-R Reading Self-Adhesive Tape

·         12' R-L Reading Self-Adhesive Tape

·         Detailed Instructions

·         Patented

Specifications

·         Fence: Aircraft grade aluminum

·         Finish: Anodized for easy clean-up

·         Cutting Capacity: 96” minimum

·         Weight: 7 lbs.

·         Length: (4) 2’ sections for 8’ of Trak length

·         Measuring Tape: (1) 12’ R to L Reading (1) 12’ L to R Reading

Take the guesswork — and your tape measure and pencil — out of cutting wood to length. Our Precision Trak & Stop Kit allows you to turn your shop miter saw into a precise cutting system. Simply slide the cursor of the stop to the dimension you’d like to cut, place the board against the stop, and cut to an exact length time after time. You build the support wings yourself out of plywood or particle board then add the trak to the topside of the board. Perfectly sized workpieces couldn’t be simpler!

Perfect for a Variety of Applications

The most common setup for the Precision Track & Stop Kit is with a miter saw, but many woodworkers find it handy to add to their radial arm saw or drill press. No matter where you use the Precision Track & Stop Kit, you’ll find it remarkably faster and more accurate than a tape measure and pencil.

Production Stop

Designed to stand up to the rigors of repetitive cuts in an industrial environment, the Production Stop drops onto the top of the fence and features dual lens cursors for convenient use on either side of the blade.

Swing Stop

The patented design of the Swing Stop™ gives you a precise measurement when you need it and swings out of the way when you don’t, by simply pushing a board into the curved face of the stop. Like the Production Stop, it features the Precision Lens Cursor for fast, pinpoint positioning.

Shop Made Support Wings

Build a simple plywood or MDF box to match the height of your saw, then add a back fence that reaches 2-1/4” above the saw height for the stops to glide upon. Instructions and mounting hardware for the Trak are included.

Rigid Aluminum Fence

Incredibly strong and built to last, our anodized aluminum Trak features an L-shaped foot that makes alignment and mounting to any 3/4” thick board a snap. Trak is designed with a groove across the top to accept the included self-adhesive measuring tape.
