LENCO 07005 L-26 LUGS #2-#6 35-16MM
$1.66
In stock
SKU
702403

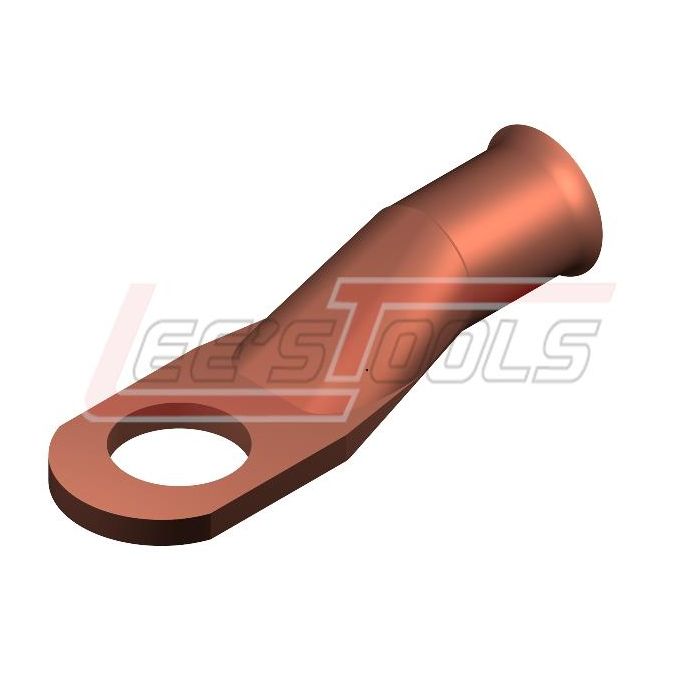

Lenco cable lugs are made precision made from copper
tubing. They have an extra long barrel for easy soldering or attaching by the
swedg-on process .The stud holes made especially for welding machines with
plenty of clearance. Flared ends make it easy to insert the cable in lug.
Specifications:
|
Model |
Item code |
Cable Capacity |
Stud Hole |
Barrel I.D |
|
L-8 |
06980 |
12-14 (3-2mm) |
13/16” (5.16mm) |
.185”(4.7mm) |
|
L-6 |
06985 |
8-10 (10-6MM) |
13/16”(5.16MM) |
.232”(6MM) |
|
L-4 |
06990 |
6-8 (16-10MM) |
21/64”(8.3MM) |
.286”(7.3MM) |
|
L-2 |
06995 |
4-6 (25-16MM) |
21/64”(8.3MM) |
.336”(8.5MM) |
|
L-26 |
07005 |
2-6 (35-16MM) |
21/64”(8.3MM) |
.344”(8.7MM) |
|
L-1 |
07000 |
2-6 (35-16MM) |
17/32”(13.5MM) |
.360”(9MM) |
|
L-12 |
07010 |
1-2 (50-35MM) |
17/32”(13.5MM) |
.402”(10.2MM) |
|
L-1020 |
07020 |
1/0-2/0 (50-70MM) |
17/32”(13.5MM) |
.495”(12.6MM) |
|
L1020-5/16 |
07021 |
SAME L1020/5/16 |
21/64”(8.3MM) |
.495”(12.6MM) |
|
L-3040 |
07030 |
3/0-4/0 (70-95MM) |
17/32”(13.5MM) |
.620”(15.7MM0 |
| Availability | In Stock |
|---|---|
| Manufacturer | LENCO |
| Manufacturer Sku | 07005 |
