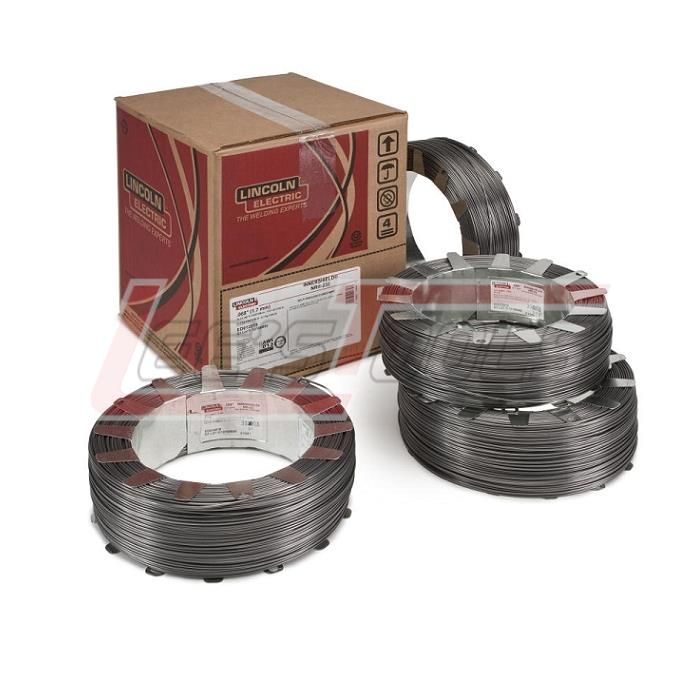

LINCOLN ELECTRIC ED012525 5/64 Innershield NR-232 54CT(13.5C) PKG 2592 PALLET AWS E71T-8-H16 MSDS US-CW145

INNERSHIELD® NR®-232

AWS: E71T-8-H16

Top Features

·         High deposition rates for out-of-position welding

·         Penetrating arc

·         Fast freezing, easy to remove slag system

·         Meets AWS D1.8 seismic lot waiver requirements

Notes: FEMA 353 and AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Electric Certificate Center.

Typical Applications

·         Structural fabrication, including those subject to seismic requirements

·         General plate fabrication

·         Hull plate and stiffener welding on ships and barges

·         Machinery parts, tanks, hoppers, racks and scaffolding

Welding Positions

·         All

Conformances

·         AWS A5.20/A5.20M: 2005: E71T-8-H16

·         ASME SFA-A5.20: E71T-8-H16

·         ABS: 3YSA

·         Lloyd’s Register: 3YS H15

·         DNV Grade: III YMS H15

·         GL: 3YH10S

·         BV Grade: SA3YMH

·         CWB/CSA W48-06: E491T-8 H16

·         DB: EN 758 T42 3 Y N 2

·         TUV: EN 758 T42 3 Y N 2

·         FEMA 353

·         AWS D1.8

NOTE: Innershield® NR-232 has a Military Grade Classification of MIL-71T-8AS for 0.068 in. (1.7 mm) and 0.072 in. (1.8 mm) diameters only.

Diameters/Packaging
