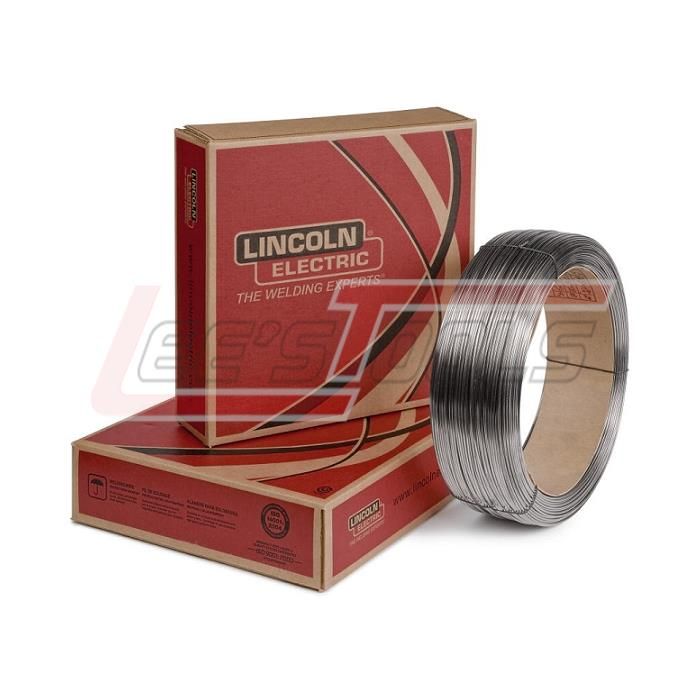

LINCOLN ELECTRIC ED012593 3/32 Innershield NR-305 50C PKG 3000 PALLET AWS E70T-6 H16 MSDS US-CW150

INNERSHIELD® NR-305

AWS: E70T-6-H16

Top Features

·         High deposition rates in the flat and horizontal positions

·         Smooth arc and low spatter levels

·         Capable of producing weld deposits with impact properties exceeding 27 J (20 ft•lbf) at -29°C (-20°F)

·         Welds on lightly rusted or primed plate

Notes: FEMA 353 and AWS D1.8 structural steel seismic supplement test data can be found in the Lincoln Electric Certificate Center

Typical Applications

·         General plate fabrication

·         Structural fabrication, including those subject to seismic requirements

·         Shipyards, stiffener welding on barges

·         Bridges and offshore rigs

·         Welding over tack welds made with stick electrode

Welding Positions

·         Flat and horizontal

Conformances

·         AWS A5.20/A5.20M: E70T-6 H16

·         ASME SFA-A5.20: E70T-6 H16

·         FEMA 353

·         AWS D1.8

Diameters/Packaging
