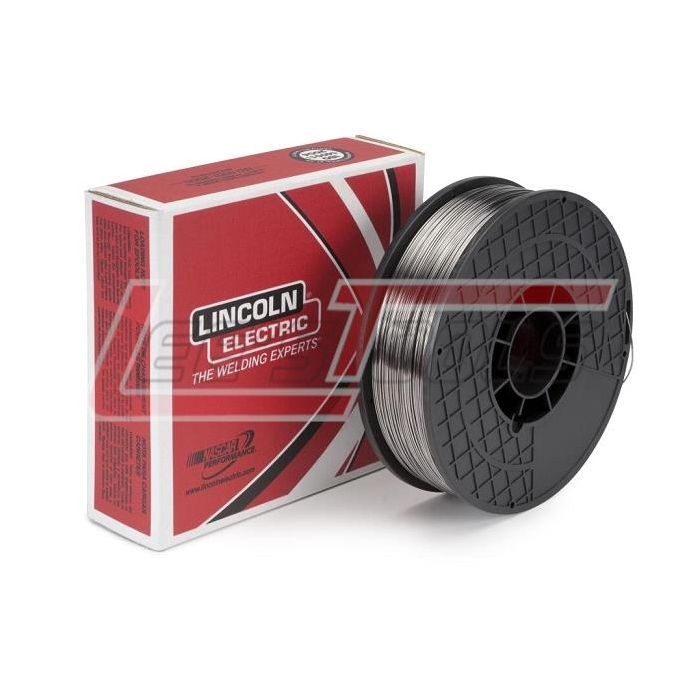

LINCOLN ELECTRIC ED016354 .035 Innershield NR-211-MP 10SP PKG 450 PALLET AWS E71T-11 MSDS US-CW140
$0.00
Out of stock
SKU
706783
INNERSHIELD® NR®-211-MP
AWS: E71T-11
Top Features
·
Versatile welding capability on a variety of base
materials
·
High operator appeal and good bead appearance
·
Easy slag removal
·
Fast freezing characteristics accommodate poor
fit-up
Typical Applications
·
Sheet or thin gauge metal
·
Galvanized sheet metal
·
Robotic/hard automation
·
General fabrication
·
5/16" maximum plate thickness for 0.045" and
smaller diameters
·
1/2" maximum plate thickness for 0.068 - 3/32"
diameters
Welding Positions
·
All, except 3/32" diameter
Conformances
·
AWS A5.20/A5.20M: 2005 E71T-11
·
ASME SFA-A5.20: E71T-11
·
ABS: E71T-11*
·
CWB/CSA: W48-06: E491T-11-H16
·
DB: EN 758 T42 Z S N 1
·
TUV: EN 758 T42 Z S N 1
·
*Except 0.030 in (0.8 mm) and 0.035 in (0.9 mm)
diameters
Diameters/Packaging
|
DIAMETER (IN) |
DIAMETER (MM) |
PACKAGE |
PRODUCT NUMBER |
|
.030 |
0.8 |
1 lb Carton |
ED031448 |
|
.030 |
0.8 |
10 lb Spool |
ED033130 |
|
.035 |
0.9 |
10 lb Spool |
ED016354 |
|
.035 |
0.9 |
1 lb Spool (10 lb Master) |
ED027641 |
|
.035 |
0.9 |
25 lb Steel Spool |
ED030637 |
|
.045 |
1.1 |
10 lb Spool |
ED016363 |
|
.045 |
1.1 |
25 lb Steel Spool |
ED030638 |
|
.068 |
1.7 |
14 lb Coil (56 lb Master) |
ED012506 |
|
.068 |
1.7 |
50 lb Coil |
ED012507 |
|
.068 |
1.7 |
25 lb Steel Spool |
ED030641 |
|
5/64 |
2.0 |
14 lb Coil (56 lb Master) |
ED012508 |
|
5/64 |
2.0 |
50 lb Coil |
ED012509 |
|
5/64 |
2.0 |
25 lb Steel Spool |
ED030645 |
|
3/32 |
2.4 |
50 lb Coil |
ED013869 |
| Availability | Out of Stock |
|---|---|
| Manufacturer | LINCOLN ELECTRIC |
| Manufacturer Sku | ED016354 |
