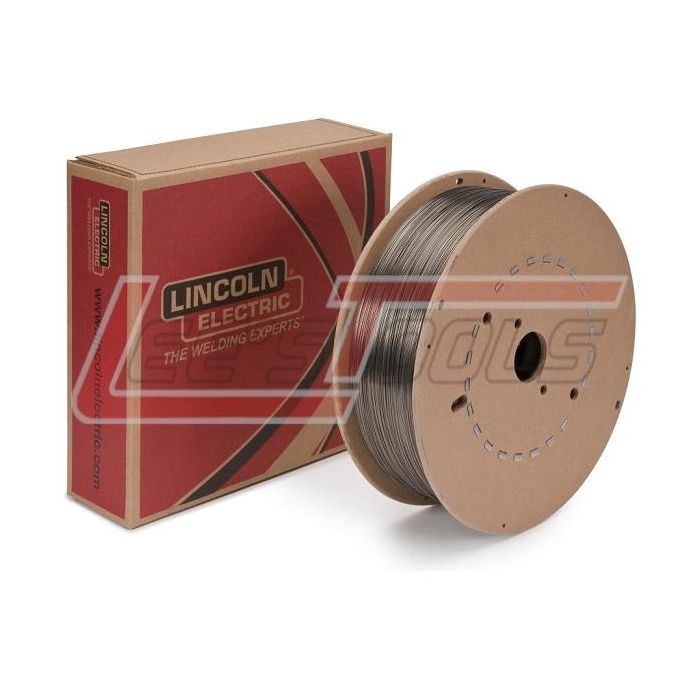

LINCOLN ELECTRIC ED033989 .045 UltraCore HD-M 33FS PKG 2970 PALLET AWS E71T-1M-H8, E71T-9M-H8 MSDS
$132.99
In stock
SKU
1647455
ULTRACORE® HD-M
AWS: E71T-1M-H8, E71T-9M-H8
Top Features
·
High
Deposition Rates – increase weld deposition up to 10 lbs/hr out-of-position
·
Flat Bead
Appearance – fast freezing slag for a flat bead shape and increased
productivity in all positions, including vertical up
·
Wide
Operating Range – operators can set the machine on a single setting and weld
in all positions
Typical Applications
·
Shipbuilding
·
General fabrication
Welding Positions
·
All
Shielding Gas
·
Mixed Shielding Gas
Conformances
·
AWS A5.20/A5.20M: 2005 and ASME SFA-5.20:
E71T-1M-H8, E71T-9M-H8
·
ABS: 3YSA H10
·
Lloyd's Register: 3YS H10
·
DNV Grade: III YMS H10
·
CWB / CSA W48-06: E491T-1M-H8, E491T-9M-H8
Diameters/Packaging
|
DIAMETER (IN) |
DIAMETER (MM) |
PACKAGE |
PRODUCT NUMBER |
|
.045 |
1.1 |
15 lb Spool (60 lb Carton) |
ED033986 |
|
.045 |
1.1 |
33 lb Fiber Spool |
ED033989 |
|
.045 |
1.1 |
50 lb Fiber Spool |
ED033992 |
|
.052 |
1.3 |
15 lb Spool (60 lb Carton) |
ED033987 |
|
.052 |
1.3 |
33 lb Fiber Spool |
ED033990 |
|
.052 |
1.3 |
50 lb Fiber Spool |
ED033993 |
|
1/16 |
1.6 |
15 lb Spool (60 lb Carton) |
ED033988 |
|
1/16 |
1.6 |
33 lb Fiber Spool |
ED033991 |
|
1/16 |
1.6 |
50 lb Fiber Spool |
ED033994 |
| Availability | In Stock |
|---|---|
| Manufacturer | LINCOLN ELECTRIC |
| Manufacturer Sku | ED033989 |
