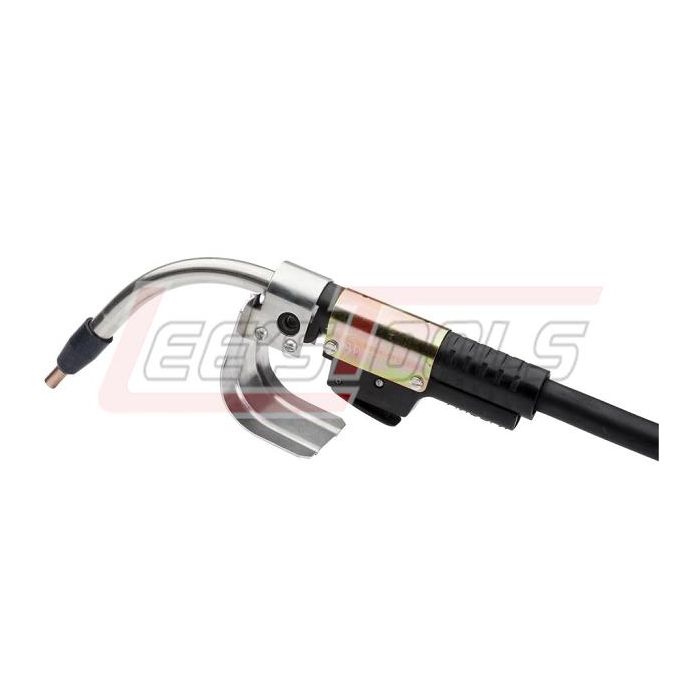

LINCOLN ELECTRIC K126-11 K126™ PRO Innershield® 350A FCAW-SS Welding Gun 15 ft 035 - .120 in (0.9 - 3.0 mm)
$615.97
In stock
SKU
709777
Lincoln Electric has been manufacturing semiautomatic
flux-cored, self-shielded (FCAW-S) gun and cable assemblies for over 40 years.
Magnum® self-shielded guns are rugged and reliable, yet lightweight, flexible
and maneuverable. Amperage ranges from 250 to 600 amps. From the smallest repair
to the largest fabrication job, Lincoln Electric’s fluxcored, self-shielded
(FCAW-S) guns are a great choice.
·
Heavy-duty gun trigger switch for positive
electrical contact and long life.
·
Reinforced rubber jacket adds strength and long
life to cable.
·
Alternate gun tubes are available for selected
guns to reach welds with limited accessibility.
·
All guns are rated at 60% duty cycle and meet
NEMA specification EW3.
Processes
·
Flux-Cored Self-Shielded
Wire Diameter Range
·
.062-3/32 in. (1.6-2.4 mm)
Specifications
|
DUTY CYCLE AT RATED AMPERAGE |
60% |
|
RATED AMPERAGE |
350 |
|
GUN TYPE |
handheldl |
|
CABLE LENGTH |
15 ft. |
|
WIRE DIAMETER |
.062-3/32 in. (1.6-2.4 mm) |
|
COOLING |
Air cooled |
|
DIMENSIONS (H X W X D) IN |
4.38 in x 24 in x 18.25 in |
|
DIMENSIONS (H X W X D) MM |
(111.3 mm x 609.6 mm x 463.6 mm) |
|
NET WEIGHT |
9.500 lbs. (4.309 kg.) |
Included
·
5/64 in. (2.0 mm) Contact Tip
·
Tip Holder
·
62° non-reverse bend gun tube
·
K613-6 Lincoln Electric gun connector
·
3/32 in. (2.4 mm) KP45H-332-15 Liner
Expendable Parts
|
PRODUCT NUMBER |
PRODUCT NAME |
|
KP2908-1 |
Tip Holder |
|
KP2907-1 |
Insulator |
|
K466-1 |
Gun Connector Kit |
|
K466-10 |
Gun Connector Kit |
|
K466-8 |
Gun Connector Kit |
|
K466-6 |
Gun Connector Kit |
|
K466-2 |
Gun Connector Kit |
|
K466-3 |
Gun Connector Kit |
|
K613-1 |
Magnum® 550 Gun Connector Kit |
|
K613-6 |
Magnum® 550 Gun Connector Kit |
|
K613-7 |
Magnum® 550 Gun Connector Kit |
|
K613-2 |
Magnum® 550 Gun Connector Kit |
|
K613-3 |
Magnum® 550 Gun Connector Kit |
|
KP2745-072 |
Contact Tip 550A .068 -.072 in (1.7-1.8 mm) |
|
KP2745-072-B100 |
Contact Tip 550A .068 -.072 in (1.7-1.8 mm) - 100/pack |
|
KP2745-072R |
Contact Tip 550A .068 -.072 in (1.7-1.8 mm) Extended Life |
|
KP2745-072R-B100 |
Contact Tip 550A .068 -.072 in (1.7-1.8 mm) Extended Life - 100/pack |
|
KP2745-116 |
Contact Tip 550A,1/16 in (1.6 mm) |
|
KP2745-116-B100 |
Contact Tip 550A 1/16 in (1.6 mm) - 100/pack |
|
KP2745-116R |
Contact Tip 550A 1/16 in (1.6 mm) Extended Life |
|
KP2745-116R-B100 |
Contact Tip 550A 1/16 in (1.6 mm) Extended Life - 100/pack |
|
KP2745-332 |
Contact Tip 550A 3/32 in (2.7 mm) |
|
KP2745-332-B100 |
Contact Tip 550A 3/32 in (2.7 mm) - 100/pack |
|
KP2745-332R |
Contact Tip 550A 3/32 in (2.4 mm) Extended |
|
KP2745-332R-B100 |
Contact Tip 550A 3/32 in (2.7 mm) Extended Life |
|
KP2745-564 |
Contact Tip 550A 5/64 in (2.0 mm) |
|
KP2745-564-B100 |
Contact Tip 550A 5/64 in (2.0 mm) - 100/pack |
|
KP2745-564R |
Contact Tip 550A 5/64 in (2.0 mm) Extended Life |
|
KP2745-564R-B100 |
Contact Tip 550A 5/64 in (2.0 mm) Extended Life - 100/pack |
|
KP2906-62 |
62° Non-Reverse Bend, 6 in (152 mm) |
|
KP2906-30 |
30° Non-Reverse Bend, 6 in (152 mm) |
|
KP2906-30-L |
30° Non-Reverse Bend, 12 in (305 mm) |
|
KP2906-62R |
62° Reverse Bend, 6 in (152 mm) |
|
KP2906-30R |
30° Reverse Bend, 6 in (152 mm) |
|
KP2906-30R-L |
30° Reverse Bend, 12 in (305 mm) |
|
KP44-564-15 |
Cable Liner 1/16-5/64 in (1.6-2.0 mm) 15 ft (4.6 m) |
|
KP45H-332-15 |
Cable Liner 5/64-3/32 in (2.0-2.4 mm) 15 ft (4.6 m) |
| Availability | In Stock |
|---|---|
| Manufacturer | LINCOLN ELECTRIC |
| Manufacturer Sku | K126-11 |
