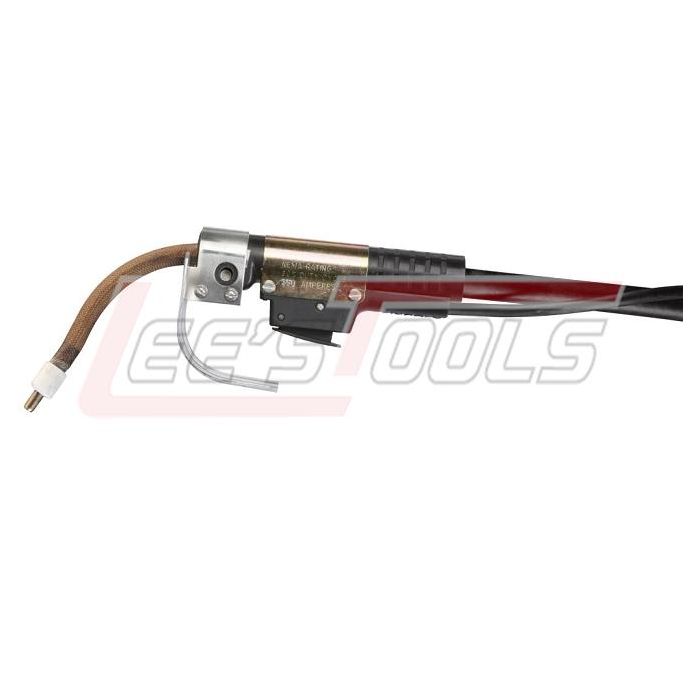

LINCOLN ELECTRIC K126-2 K126™ Classic 350A FCAW-SS Welding Gun 15 ft 062-332
$736.59
In stock
SKU
709779
Lincoln Electric has been manufacturing semiautomatic
flux-cored, self-shielded (FCAW-S) gun and cable assemblies for over 40 years.
Magnum® self-shielded guns are rugged and reliable, yet lightweight, flexible
and maneuverable. Amperage ranges from 250 to 600 amps. From the smallest repair
to the largest fabrication job, Lincoln Electric’s fluxcored, self-shielded
(FCAW-S) guns are a great choice.
·
Heavy-duty gun trigger switch for positive
electrical contact and long life.
·
Reinforced rubber jacket adds strength and long
life to cable.
·
Alternate gun tubes are available for selected
guns to reach welds with limited accessibility.
·
All guns are rated at 60% duty cycle and meet
NEMA specification EW3.
Processes
·
Flux-Cored Self-Shielded
Wire Diameter Range
·
.062-3/32 in. (1.6-2.4 mm)
Specifications
|
DUTY CYCLE AT RATED AMPERAGE |
60% |
|
RATED AMPERAGE |
350 |
|
GUN TYPE |
handheldl |
|
CABLE LENGTH |
15 ft. |
|
WIRE DIAMETER |
.062-3/32 in. (1.6-2.4 mm) |
|
COOLING |
Air cooled |
|
DIMENSIONS (H X W X D) IN |
4.38 in x 24 in x 18.25 in |
|
DIMENSIONS (H X W X D) MM |
(111.3 mm x 609.6 mm x 463.6 mm) |
|
NET WEIGHT |
12.000 lbs. ( 5.443 kg. ) |
Expendable Parts
|
PRODUCT NUMBER |
PRODUCT NAME |
|
KP1909-1 |
Gun Tube Assembly, 68°. (nozzle) |
|
KP1914-1 |
Gun Tube Assembly FCAW 30° 12 in |
|
KP1914-2 |
Gun Tube Assembly FCAW 30° 6 in |
|
KP1920-1 |
Gun Tube Assembly (90°) |
|
KP1987-1 |
Nozzle Insulated (Nose Cone) |
|
KP1995-1 |
Nozzle Insulated Guide 2 in (51 mm) 068-5/64-FC |
|
KP2089-1 |
Gun Tube Insulator / Thread Prot. FCAW |
|
KP2090-1 |
Nozzle Insulated Guide 2.75 in (70 mm) 3/32-FC |
|
KP2094-2 |
Insert Ceramic Gun / Nozzle Tubes |
|
KP2095-4 |
Liner Spring .133 in (3.4 mm) inner diameter .240 in (6.1 mm) outer
diameter 5.00 in |
|
KP2100-1 |
B1Contact Tip .068-.072 in (1.7-1.8 mm), 5/16 in (7.9 mm) long, 18
thread |
|
KP2100-2 |
B1Contact Tip 1/16 in (1.6 mm), 5/16 in (7.9 mm) long, 18 thread |
|
KP2100-3 |
B1Contact Tip 3/32 in (2.7 mm), 5/16 in (7.9 mm) long, 18 thread |
|
KP2100-4 |
B1Contact Tip 5/64 in (2 mm), 5/16 in (7.9 mm) long, 18 thread |
|
KP2454-1 |
Gun Tube Assembly 62° 7.5 ines |
|
KP2455-1 |
Gun Tube Assembly 45° 6 ines |
|
KP2456-1 |
Gun Tube Assembly 30° 12 ines |
|
KP2482-1 |
Nozzle Assmbly (30°) 11.68 in |
| Availability | In Stock |
|---|---|
| Manufacturer | LINCOLN ELECTRIC |
| Manufacturer Sku | K126-2 |
