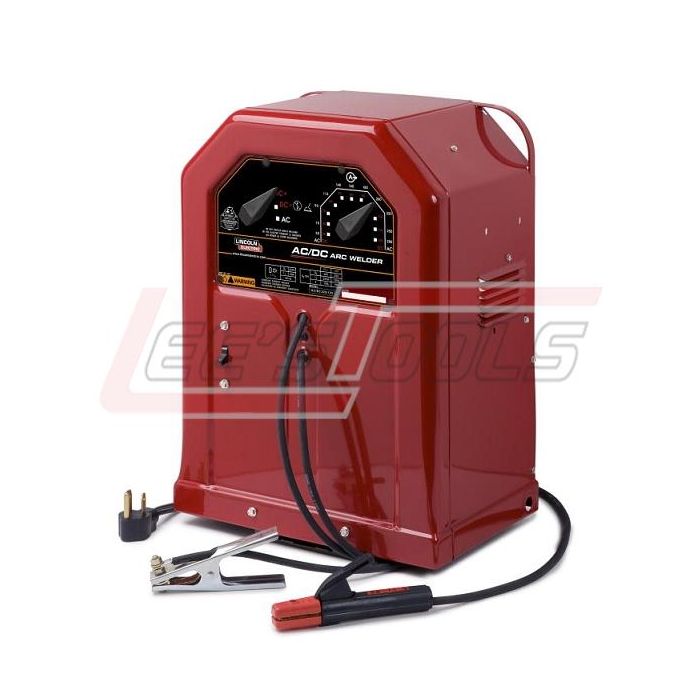

LINCOLN ELECTRIC K1297 AC/DC 225/125 - 230/1/60

Tackle more tasks with AC/DC.

The AC/DC 225/125 is the same proven design as the renowned AC-225 arc welder, but adds the smoother, more stable DC welding arc. This machine is ideal for farm, shop, and home use where improved arc welding performance is desired.

·         Easy to operate - With front mounted AC/DC polarity switch and full range amperage selector switch for accurate and dependable procedure setting.

·         Smooth arc - Makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.

·         125 amp DC output - Enough for most 1/8” (3.2 mm) electrodes.

·         225 amp AC output - Enough for 3/16” (4.8 mm) diameter general purpose mild steel electrodes and 5/32” (4.0 mm) sizes of other electrodes.

·         NEMA rated, UL listed and CSA approved.

 Input Power

·         230/1/60

Processes

·         Stick

Output

Input

Specifications

Included

·         Insulated electrode holder and cable.

·         Heavy duty work clamp and cable.

·         Input cable with attached plug.

Accessories
