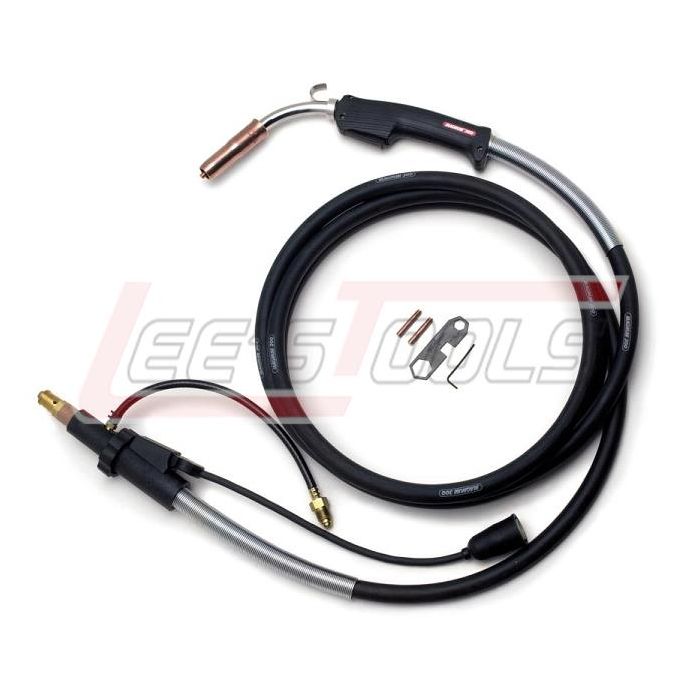

LINCOLN ELECTRIC K1802-1 Magnum® 300 Welding Gun Package 15 ft 035-045 Liner
$544.25
In stock
SKU
710083
Semiautomatic Gas-Shielded Guns
Magnum® guns for MIG or flux-cored welding feature our
classic curved handle and are available in a number of amperage ranges for use
in many applications. This popular Magnum® gun is intended for most .035-.045
in. (0.9-1.1 mm) wire diameter applications in job shops, production or
manufacturing..
·
One-piece
modular trigger assembly - Molded out of high heat resistant material to
withstand head and spatter and ensure long life.
·
Gun tube
design - Armored with an electrically insulated metal jacket optimizing fine
wire welding performance.
·
Abrasion-resistant, extruded rubber jacket - Adds strength and long life to
the cable.
·
Classic curved handle - Lightweight and balanced,
providing a comfortable grip to reduce fatigue.
·
Rotating
gun tube and gun hanger clip - Allow any number of hand positions to reduce
fatigue or fit into tight spaces.
Processes
·
MIG, Flux-Cored Gas-Shielded
Wire Diameter Range
·
.025-5/64 in. (.6-2.0 mm)
Specifications
|
DUTY CYCLE AT RATED AMPERAGE |
60% |
|
RATED AMPERAGE |
300 |
|
GUN TYPE |
Handheld |
|
CABLE LENGTH |
15 ft. (4.5 m) |
|
WIRE DIAMETER |
.025-5/64 in. (.6-2.0 mm) |
|
COOLING |
Air cooled |
|
DIMENSIONS (H X W X D) IN |
3.38 in x 19.5 in x 18.5 in |
|
DIMENSIONS (H X W X D) MM |
(85.9 mm x 495.3 mm x 469.9 mm) |
|
NET WEIGHT |
13.000 lbs. (5.897 kg.) |
Included
·
Contact Tip
·
Gas Diffuser
·
Gas Nozzle
·
Insulator
·
Cable Liner
·
Gun Tube (60°)
·
K466-1 Gun Connector Kit
Accessories
|
CATEGORY |
PRODUCT NUMBER |
PRODUCT NAME |
|
General |
K481 |
Gas Tube Kit |
Expendable Parts
|
PRODUCT NUMBER |
PRODUCT NAME |
|
KP14-116 |
Contact Tip 1/16 in (1.6 mm) |
|
KP14-25 |
Contact Tip .025 in (0.6 mm) |
|
KP14-30 |
Contact Tip .030 in (0.8 mm) |
|
KP14-35 |
Contact Tip .035 in (0.9 mm) |
|
KP14-40 |
Contact Tip .040 in (1.0 mm) |
|
KP14-45 |
Contact Tip .045 in (1.2 mm) |
|
KP14-52 |
Contact Tip .052 in (1.3 mm) |
|
KP14-564 |
Contact Tip 5/64 in (2.0 mm) |
|
KP14A-364 |
Contact Tip 3/64 in (1.2 mm) |
|
KP14AH-116 |
Contact Tip Heavy Duty 1/16A (1.6 mm) |
|
KP14AH-364 |
Contact Tip Heavy Duty 3/64A (1.2 mm) |
|
KP14H-116 |
Contact Tip Heavy Duty 1/16 in (1.6 mm) |
|
KP14H-35 |
Contact Tip Heavy Duty .035 in (0.9 mm) |
|
KP14H-40 |
Contact Tip Heavy Duty .040 in (1.0 mm) |
|
KP14H-45 |
Contact Tip Heavy Duty .045 in (1.2 mm) |
|
KP14H-52 |
Contact Tip Heavy Duty .052 in (1.3 mm) |
|
KP14H-564 |
Contact Tip Heavy Duty 5/64 in (2.0 mm) |
|
KP14T-116 |
Contact Tip Tapered 1/16 in (1.6 mm) |
|
KP14T-25 |
Contact Tip Tapered .025 in (0.6 mm) |
|
KP14T-30 |
Contact Tip Tapered .030 in (0.8 mm) |
|
KP14T-35 |
Contact Tip Tapered .035 in (0.9 mm) |
|
KP14T-40 |
Contact Tip Tapered .040 in (1.0 mm) |
|
KP14T-45 |
Contact Tip Tapered .045 in (1.2 mm) |
|
KP14T-52 |
Contact Tip Tapered .052 in (1.3 mm) |
|
KP2010-3B1 |
Contact Tip Notched .030 in (.8 mm) |
|
KP2010-4B1 |
Contact Tip Notched .035 in (.9 mm) |
|
KP2010-5B1 |
Contact Tip Notched 3/64 in (1.2 mm) |
| Availability | In Stock |
|---|---|
| Manufacturer | LINCOLN ELECTRIC |
| Manufacturer Sku | K1802-1 |
