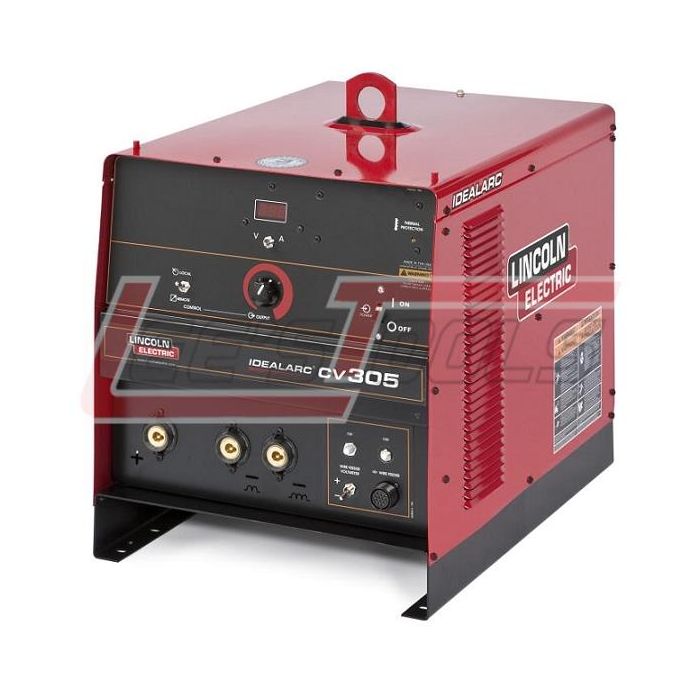

LINCOLN ELECTRIC K2400-1 Idealarc® CV305 MIG Welder - 208/230/460/3/60
$6,293.08
In stock
SKU
710360
You won't
find a more reliable power source.
This unit is
the most compact unit in its class, yet it’s loaded with convenient features! A
digital meter, line voltage compensation and remote/local control are all
standard.
·
Two output connectors – Allow you to connect to high or low
inductance for optimal arc control. Use low inductance output connection when
short-arc welding, and high inductance output connection with spray and globular
transfer welding.
·
Digital Ammeter/Voltmeter – Display allows presets for added
convenience and accuracy.
·
Easy access Twist Mate® connection – On the front of the machine.
·
Quality & Reliability – Environmentally protected transformer and
power rectifier are rugged and reliable.
·
Seven-year warranty on power rectifier.
Input Power
·
208/230/460/3/60
Processes
·
MIG, Flux-Cored
Output
Input
Specifications
|
INPUT POWER |
208/230/460/3/60 |
|
RATED OUTPUT |
315A/32.6V/100% |
|
INPUT CURRENT |
51/48/24A |
|
OUTPUT RANGE |
50-400A DC 7-37V |
|
DIMENSIONS (H X W X D)
IN |
24.6 in x 19.5 in x 27 in |
|
DIMENSIONS (H X W X D) MM |
(625 mm x 495 mm x 686 mm) |
|
NET WEIGHT |
300.000 lbs. (136.080 kg.) |
Accessories
|
CATEGORY |
PRODUCT NUMBER |
PRODUCT NAME |
|
General |
K1803-1 |
Work and Wire Feeder 2/0 Weld Cable Package |
|
General |
K867 |
Universal Adapter Plug |
|
General |
K857 |
Remote Output Control - 25 ft. (7.6 m) |
|
General |
K857-1 |
Remote Output Control - 100 ft. (30.5 m) |
|
General |
K864 |
Remote Control Adapter |
|
General |
K852-70 |
Twist Mate™ Plug - For 1/0-2/0 (50-70mm2) Cable |
|
General |
K852-95 |
Twist Mate™ Plug - For 2/0-3/0 (70-95mm2) Cable |
|
General |
K484 |
Jumper Plug Kit |
|
General |
K874 |
Undercarriage |
|
Wire Feeder |
K2327-4 |
LF-72 Wire Feeder, Base Model (No Gun) |
|
Wire Feeder |
K2327-5 |
LF-72 Wire Feeder, Bench Model, Standard Duty |
|
Wire Feeder |
K2327-6 |
LF-72 Wire Feeder, Bench Model, Heavy Duty |
|
Wire Feeder |
K2327-7 |
LF-72 Wire Feeder, Bench Model, Heavy Duty (No Gun) |
|
Wire Feeder |
K2426-4 |
LF-74 Wire Feeder, Base Model |
|
Wire Feeder |
K2426-5 |
LF-74 Wire Feeder, Bench Model, Heavy Duty |
|
Wire Feeder |
K2613-2 |
LN-25 PRO Wire Feeder Extra Torque |
| Availability | In Stock |
|---|---|
| Manufacturer | LINCOLN ELECTRIC |
| Manufacturer Sku | K2400-1 |
