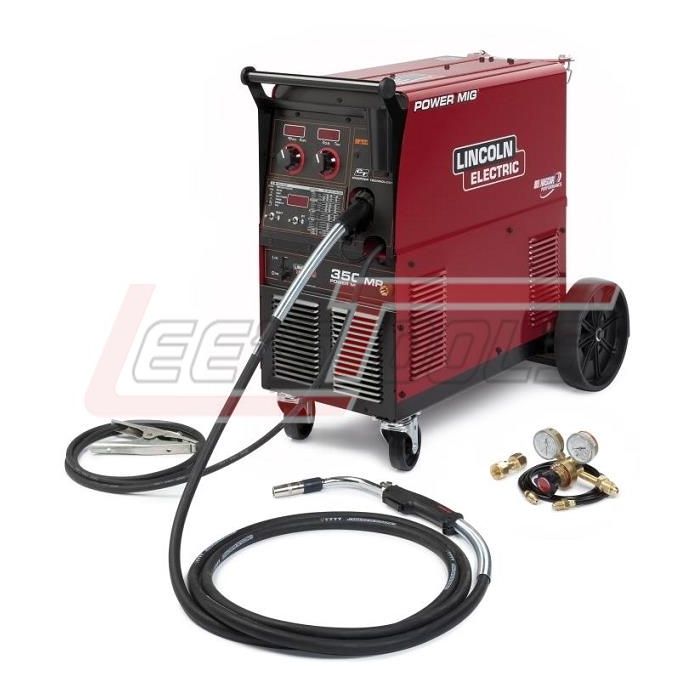

LINCOLN ELECTRIC K2403-2 POWER MIG® 350MP MIG Welder - 208/230/460/575/1/60
$6,776.93
Out of stock
SKU
1474755
POWER MIG.® The Professional’s Choice(SM)
When you need more than just a MIG machine, the POWER MIG®
350MP is the choice for you. Lincoln Electric Chopper Technology® delivers more
welding processes – MIG and flux-cored, along with excellent stick welding, TIG
and advanced processes such as Power Mode® and Pulse-on-Pulse®.
·
Lincoln Electric Chopper Technology®
- Delivers high quality welds by increasing the control over the welding arc.
·
Multi-Process capable - Welds MIG,
flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse®
and Power Mode®.
·
Pulse-on-Pulse® - Improves
cleaning action when welding aluminum and delivers a TIG-like appearance to the
weld bead.
·
Power Mode® - Maintains a stable,
smooth arc for short arc welding on thin material – great arc length control for
aluminum welding.
·
Synergic control - Allows you to
set weld procedures with only one control for simplicity.
·
Rugged MAXTRAC® cast aluminum industrial
wire drive - Features dual driven rolls, easy-turn numeric tension
indicator, brass-to-brass gun connections and Lincoln’s 100% wire-supporting
split wire guide system.
·
3 Ways to Feed Aluminum - Choose a
Push Gun, Spool Gun or Push-Pull Gun to feed aluminum. The POWER MIG® 350 has
the electronics build-in for all three methods - no PC board add-ons are
required.
Top Features
·
Lincoln Electric Chopper Technology®
·
Multi-Process capable
·
Pulse-on-Pulse® - Improves cleaning action when
welding aluminum
·
Power Mode® - Maintains a stable, smooth arc for
short arc welding on thin material
·
Synergic control - Allows you to set weld
procedures with only one control for simplicity.
Input Power
·
208/230/460/575/1/60
Processes
·
MIG, Pulsed, Flux-Cored, Stick, TIG
Output
Input
Specifications
|
INPUT POWER |
208/230/460/575/1/60 |
|
RATED OUTPUT |
300A/32V/60% |
|
INPUT CURRENT |
76/64/37/29A |
|
OUTPUT RANGE |
5-350A DC |
|
SOLID WIRE SIZE RANGE |
.023-.045 |
|
CORED WIRE SIZE RANGE |
.035-.045" |
|
WIRE FEED SPEED RANGE |
50-700 |
|
DIMENSIONS (H X W X D) |
31.8 in x 18.9 in x 38.8 in (808 mm x 408 mm x 985 mm) |
|
NET WEIGHT |
255.000 lbs. (115.668 kg.) |
Included
·
POWER MIG® 350MP
·
Magnum® PRO Curve™ 300 Gun 15 ft. (4.5 m)
·
.035/.045 in. (0.9/1.2 mm) Drive Rolls and Guide
for Steel
·
Gas Regulator and Hose
·
Work Clamp and Cable
·
230V Input Cord and Plug
·
115V AC Auxiliary Power Receptacle
·
Lockable Storage Compartment with Tool Tray
Accessories
|
CATEGORY |
PRODUCT NUMBER |
PRODUCT NAME |
|
General |
K1702-1 |
Dual Cylinder Mounting Kit |
|
General |
K2378-1 |
Canvas Cover (Medium) |
|
Stick |
K875 |
Accessory Kit - 150 Amp |
|
Stick |
K704 |
Accessory Kit - 400 Amp |
|
Stick |
K857 |
Remote Output Control - 25 ft. (7.6 m) |
|
Stick |
K857-1 |
Remote Output Control - 100 ft. (30.5 m) |
|
TIG |
K1782-2 |
PTA-17 TIG Torch (12.5 ft 2pc) |
|
TIG |
K1782-4 |
PTA-17 TIG Torch (25 ft 2pc) |
|
TIG |
K1783-2 |
PTA-26 TIG Torch (12.5 ft 2pc) |
|
TIG |
K1783-4 |
PTA-26 TIG Torch (25 ft 2pc) |
|
TIG |
KP508 |
Parts Kit |
|
TIG |
KP509 |
Parts Kit |
|
TIG |
K870 |
Foot Amptrol™ |
|
TIG |
K963-3 |
Hand Amptrol™ |
|
TIG |
K814 |
Arc Start Switch |
|
Wire Feeder |
K489-8 |
Fast-Mate Adapter Kit |
|
Wire Feeder |
K2490-1 |
Magnum® 250LX Spool Gun, Air-Cooled, 25 ft. |
|
Spool Gun |
K2519-1 |
Control Cable Extension |
|
Spool Gun |
K1738-1 |
Spool Gun Holder for Power MIG |
|
Wire Feeder |
K3038-1 |
Python-Plus Air-Cooled Push-Pull Welding Gun, 15 ft. |
|
Wire Feeder |
K3038-2 |
Python-Plus Air-Cooled Push-Pull Welding Gun, 25 ft. |
|
Wire Feeder |
K3038-3 |
Python-Plus Air-Cooled Push-Pull Welding Gun, 50 ft. |
|
Wire Feeder |
K2212-2 |
Standard Python Water-Cooled Welding Gun, 25 ft. |
|
Wire Feeder |
K2154-1 |
Push-Pull Torch Connection Kit |
|
Wire Feeder |
K2704-2 |
Cougar™ Push-Pull Welding Gun, Air-Cooled, 25 ft. (7.6 m) |
|
Wire Feeder |
K2704-3 |
Cougar™ Push-Pull Welding Gun, Air-Cooled, 50 ft. (15.2 m) |
|
Wire Feeder |
K468 |
Spindle Adapter for Small Spools |
| Availability | Out of Stock |
|---|---|
| Manufacturer | LINCOLN ELECTRIC |
| Manufacturer Sku | K2403-2 |
