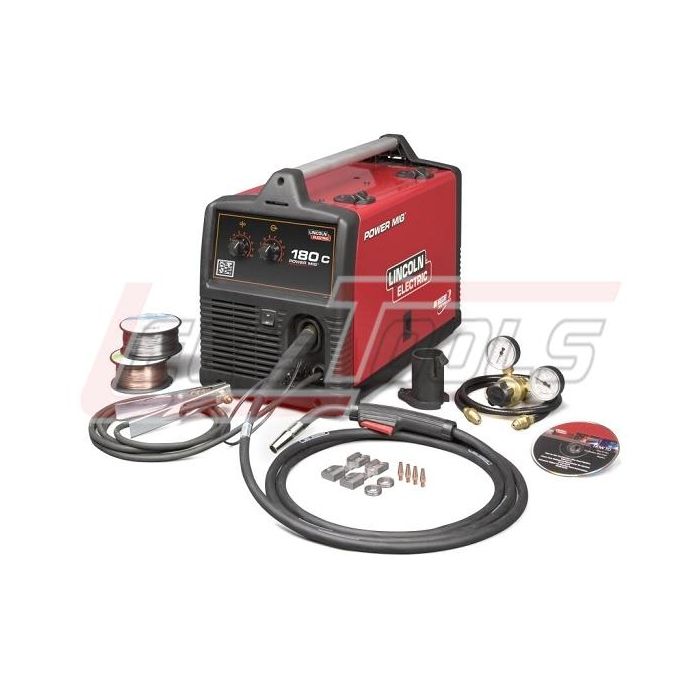

LINCOLN ELECTRIC K2473-2 POWER MIG® 180C MIG Welder - 208/230/1/60

POWER MIG.® The Professional’s ChoiceSM

Whether you’re a farmer or a fabricator, an autobody shop or a backyard mechanic, the POWER MIG® 180C will help you get the job done! It’s a portable wire welder designed for use with industrial 230 volt input power, so you can weld on thicker material – up to 3/16 in. with MIG welding and 1/2 in. with gas-less flux-cored welding.

·         Diamond Core Technology™ – Delivers a forgiving arc, excellent out-of-position arc action, low spatter and a wide voltage sweet spot at a given wire feed speed for steel, stainless steel or aluminum.

·         Industrial Cast Aluminum Drive – Dual gear-driven drive rolls deliver positive traction. Patented split wire guides ensure optimal wire alignment and a brass-to-brass gun connection aids critical conductivity. A large industrial closed-design drive motor improves torque and enhances trouble-free performance.

·         No Hassle Tool-less Design – For input power changes, wire spool mounting, wire drive service and polarity changes.

·         Spool Gun Ready – Just remove the standard MIG gun and plug in the economical Magnum® 100SG spool gun (optional) for enhanced aluminum wire feeding performance.

·         Toughest PC Board Protection in the industry – ‘Potted’ to seal sensitive components from the environment, ‘trayed’ in a tough plastic tray to add rigidity and shock resistance.

 Input Power

·         208/230/1/60

 Processes

·         MIG, Flux-Cored

 Output

 Input

Specifications

Included

·         Magnum® PRO 100L gun, 10 ft. (3.0 m)

·         Gas and Gasless Nozzles

·         Cable Liner

·         .025 in. (0.6 mm) and .035 in. (0.9 mm) Contact Tips

·         Work Cable and Clamp

·         Adjustable Gas Regulator and Hose

·         Spindle Adapter

·         Sample Spool of .025 in. (0.6 mm) SuperArc® L-56 Mild Steel MIG Wire

·         Sample Spool of .035 in. (0.9 mm) Innershield® NR-211-MP Flux-Cored Wire

·         Learn-To-Use DVD

·         .035 in. (0.9 mm) and .025 - .030 in. (0.6 - 0.7 mm) Drive Rolls

·         .030 - .045 in. (0.7 - 1.1 mm) Knurled Drive Roll

·         .025 - .035 in. (0.6 - 0.9 mm) and .035 - .045 in. (0.9 - 1.1 mm) Wire Guides

 Accessories
