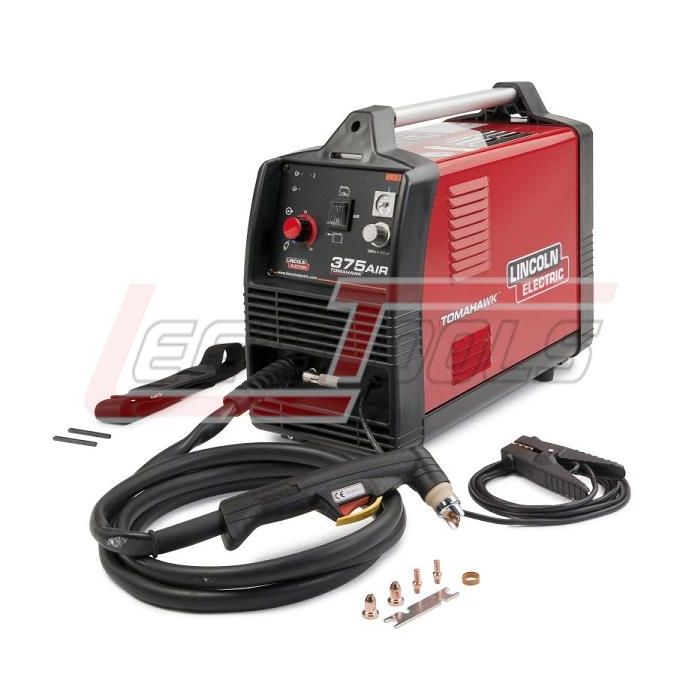

LINCOLN ELECTRIC K2806-1 Tomahawk® 375 Air Plasma Cutter - 208/230/1/60

$1,900.39
Out of stock
SKU
710633

Plasma Cutting - Anywhere, Anytime

The Tomahawk® 375 Air plasma cutting system arrives ready to go for fast and precise cutting. With the 375 Air, forget the grinder – simply pick up the torch and cut in seconds.

·         Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.

·         Continuous Output Control – Focus the arc for different material thickness.

·         Touch Start System – Reliable plasma arc initiation without high frequency.

·         Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.

·         Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.

·         Cool Operation, Long Consumable Life - New electrode and nozzle design save you money in the long run.

·         Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.

·         Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.

 Output  Direct current welding ouput

 Input      60 hertz input power	  Single phase input power

Specifications

INPUT POWER

208/230/1/60

RATED OUTPUT

 13A@85.2V 100% 18A@87.2V 60%

INPUT CURRENT

21.7A

OUTPUT RANGE

10-25A

DIMENSIONS (H X W X D)  IN

15.2 in x 8.5 in x 18.9 in

DIMENSIONS (H X W X D)  MM

(385 mm x 215 mm x 480 mm)

NET WEIGHT

40.000 lbs. (18.144 kg.)



Included

·         Internal air compressor (external air connection also standard)

·         Lincoln Electric LC25 Torch with 10 ft. (3 m) cable

·         Air regulator and pressure gauge

·         Internal water separator

·         Work clamp and cable

·         Spare consumables

·         Shoulder strap

·         Input power cord

Accessories

CATEGORY

PRODUCT NUMBER

PRODUCT NAME

General

K2886-1

Plasma Circle Cutting Guide Kit

General

K2377-1

Canvas Cover (Small)

General

K3071-1

Canvas Accessory Bag

General

K2846-1

LC25 Replacement Torch

Power Source

K2857-1

Ranger® 225 Engine Driven Welder

Power Source

K2382-4

Ranger® 250 GXT Engine Driven Welder (w/Electric Fuel Pump)

Power Source

K2937-1

Ranger® 305 LPG Engine Driven Welder (Kohler)

Power Source

K1726-5

Ranger® 305 G Engine Driven Welder (Kohler)

Power Source

K1727-3

Ranger® 305 D Engine Driven Welder (Kubota)

Power Source

K2409-3

Vantage® 300 Engine Driven Welder (Kubota)

Power Source

K2410-3

Vantage® 400 Engine Driven Welder (Perkins)

Power Source

K2405-2

Vantage® 500 Engine Driven Welder (Deutz)

Power Source

K2325-2

Air Vantage® 500 Engine Driven Welder



More Information
Availability Out of Stock
Manufacturer LINCOLN ELECTRIC
Manufacturer Sku K2806-1
