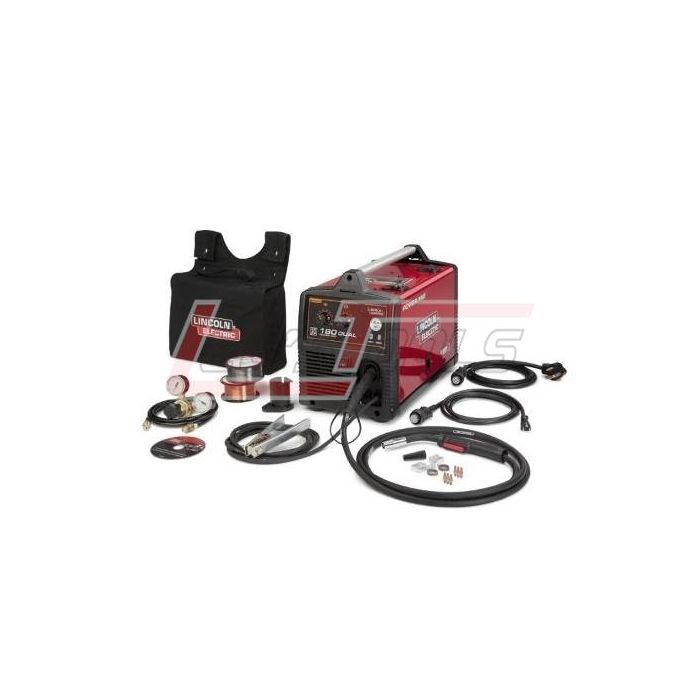

LINCOLN ELECTRIC K3018-2 POWER MIG® 180 Dual MIG Welder - 120/1/60 or 208/230/1/60
$1,949.00
Out of stock
SKU
1474770
Have it both ways with the POWER MIG® 180 Dual wire welder.
With dual 120 or 208/230 volt input power capability, you can use the same
machine to weld at home, in the shop or out on the job site. It’s a great choice
for sheet metal and light frame autobody work, farm or small shop applications.
Dual Input Power
Capability – Select 120 volt input power for home and generator-driven
environments or choose 208/230 volt input power for shop applications on thicker
materials.
Industrial Cast
Aluminum Drive – Dual gear-driven drive rolls deliver positive traction.
Patented split wire guides ensure optimal wire alignment and a brass-to-brass
gun connection aids critical conductivity. A large industrial closed-design
drive motor improves torque and enhances trouble-free performance.
Diamond Core
Technology™ – Delivers a forgiving arc, excellent out-of-position arc
action, low spatter and a wide voltage sweet spot at a given wire feed speed for
steel, stainless steel and aluminum.
Spool Gun Ready
– Just remove the standard MIG gun and plug in the economical Magnum® 100SG
spool gun (optional) for enhanced aluminum wire feeding performance.
No Hassle Tool-less
Design - For input power changes, wire spool mounting, wire drive service
and polarity changes.
Top Features
·
Dual Input Power Capability
·
Industrial Cast Aluminum Drive
·
Diamond Core Technology™
·
Spool Gun Ready
·
No Hassle Tool-less Design
Input Power
·
120/1/60 or 208/230/1/60
Processes
·
MIG, Flux-Cored
Output
Input
Specifications
|
INPUT POWER |
120/1/60 or 208/230/1/60 |
|
RATED OUTPUT |
120V:90A/19.5V/20% 208V: 130A/17.6V/30% 230V: 130A/20V/30% |
|
INPUT CURRENT |
20A |
|
OUTPUT RANGE |
120V: 30-140 Amps DC 230V: 30-180 Amps DC |
|
SOLID WIRE SIZE RANGE |
.025-.035 in. |
|
CORED WIRE SIZE RANGE |
.030-.045 in. |
|
WIRE FEED SPEED RANGE |
500 |
|
DIMENSIONS (H X W X D) |
14 in x 10.15 in x 18.16 in (357 mm x 258 mm x 472 mm) |
|
NET WEIGHT |
66.800 lbs. (30.300 kg.) |
Included
·
Magnum® 100L Gun, 10 ft. (3.0 m)
·
120V and 230V Input Cables
·
Input Cable Bag
·
Gas and Gasless Nozzles
·
Gun Cable Liner (pre-installed in gun)
·
Work Cable and Clamp
·
Adjustable Gas Regulator and Hose
·
Spindle Adapter
·
Sample (0.90 kg) Spool of SuperArc® L-56® Mild
Steel MIG Wire
·
Sample (0.45 kg) Spool NR®-211-MP Flux-Cored Wire
·
.025 in. (0.6 mm) and .035 in. (0.9 mm) Contact
Tips
·
.025 - .030 in. (0.6 - 0.8 mm) and .035 in. (0.9
mm) Drive Rolls
·
0.30 - .045 in. (0.8 - 1.1 mm) Knurled Drive
Rolls
·
0.25 - .035 in. (0.6 - 0.9 mm) and .045 (1.1 mm)
Wire Guides
Accessories
|
CATEGORY |
PRODUCT NUMBER |
PRODUCT NAME |
|
General |
K2275-1 |
Welding Cart (80 cu.ft bottle capacity |
|
General |
K520 |
Utility Cart (150 cu.ft bottle capacity) |
|
General |
K2371-1 |
Canvas Cover (Small) |
|
General |
K2525-1 |
Spot Timer
Kit |
|
General |
K3071-1 |
Canvas Accessory Bag |
|
General |
K2532-1 |
Magnum® 100SG Spool Gun, Air-Cooled |
|
General |
K2528-1 |
Innershield® Welding Kit .045 in (1.2 mm) |
| Availability | Out of Stock |
|---|---|
| Manufacturer | LINCOLN ELECTRIC |
| Manufacturer Sku | K3018-2 |
