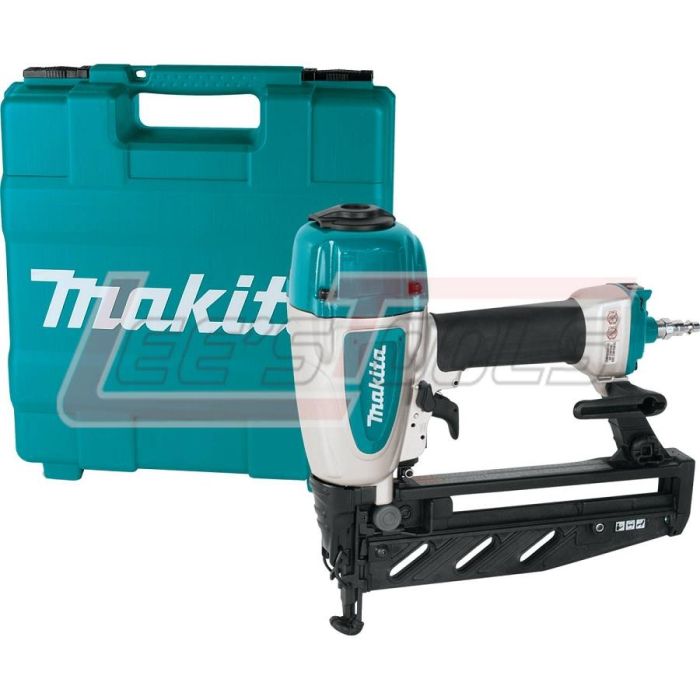

MAKITA AF601 2-1/2" Straight Finish Nailer, 16 Ga.
16 Gauge, 2-1/2" Straight Finish Nailer
PRECISION : "Tool-less"
depth adjustment for precise flush and countersink finish
POWER : Efficient motor design
offers leading power performance
EFFICIENCY : Nail lock-out
mechanism protects tool and work surface
CONVENIENCE : Rear-loading
magazine for quick loading of nails from 1" to 2-1/2" long
INCLUDES : Pneumatic nailer oil,
safety glasses, air fitting, no-mar tips (2), tool case
The Makita 16 Gauge Straight
Finish Nailer (model AF601) combines a myriad of features and powerful
performance in a compact size. The AF601 has a rear-loading magazine that
accepts standard 16 ga. straight finish nails sized 1" to 2-1/2". The
nail lock-out and large windows alert the user when to reload nails as the
contact arm and trigger are used together for controlled firing. With a compact
size and weighing in at only 3.8 lbs., the AF601 was engineered for all-day
professional use. Additional convenience features include a reversible belt
hook that allows the tool to remain close-by, a multi-directional exhaust port
that directs exhaust air away from the user, a built-in air duster that
provides convenient air flow to clear your workspace, and a 2-mode selector
switch offering quick control over nailing operation.
Features
- Efficient motor design offers
leading power performance
- Nail lock-out mechanism protects
tool and work surface from dry-fires
- "Tool-less" depth
adjustment for more precise flush and countersink nailing
- Built-in air duster provides
convenient air flow to clear work surface
- 2-mode selector switch for
control over nailing operation
- Multi-directional exhaust port
directs exhaust air away from operator
- "Tool-less" easy to
clear nose for fast and easy nail extraction
- Housing bumpers protect tool and
work surface
- Magnesium body offers durability
and less weight
- Includes two removable no-mar
tips; convenient on tool storage
- Powerful motor design drives
standard 16 gauge, straight finish nails from 1" to 2-1/2" in length
- Reversible belt hook allows the
tool to remain close
- Integrated rubber soft grip for
operator comfort
- Rear lock-and-load magazine holds
up to 100 nails for maximum efficiency
- Narrow nose design allows easy
nailing access in confined areas
- Ideal for trim work, baseboard
and crown molding installation, flooring and other woodworking applications
- Minimum recommended air delivery
of 2.7 SCFM @ 90PSI
- 3-year limited warranty
Includes
(1) Pneumatic Nailer Oil
(181434-7)
(1) Safety Glasses
(2) No-Mar Tip
(1) Air Fitting
(1) Tool Case
Specifications
|
Operating Air Pressure |
70 - 120 PSI |
|
Nail Size (in., ga.) |
1" to 2-1/2" (16
ga.) |
|
Maximum Magazine Capacity |
100 |
|
Minimum Recommended Air Delivery |
2.7 SCFM @ 90 PSI |
|
Certifications and listings |
ANSI Certified |
|
Dimensions (LxWxH) |
12" x 3-3/4" x
11-3/4" |
|
Net Weight |
3.8 lbs. |
|
Color Family |
Teal |
|
Fastening category |
Finish |
|
Manufacturer Warranty |
3-year limited warranty |
|
Max. nail/fastener length |
2-1/2" |
|
Power Type |
Pneumatic |
|
Case Included |
Yes |
|
Shipping Weight |
9 lbs. |
|
UPC Code |
088381-822404 |
| Availability | In Stock |
|---|---|
| Manufacturer | MAKITA |
| Manufacturer Sku | AF601 |
