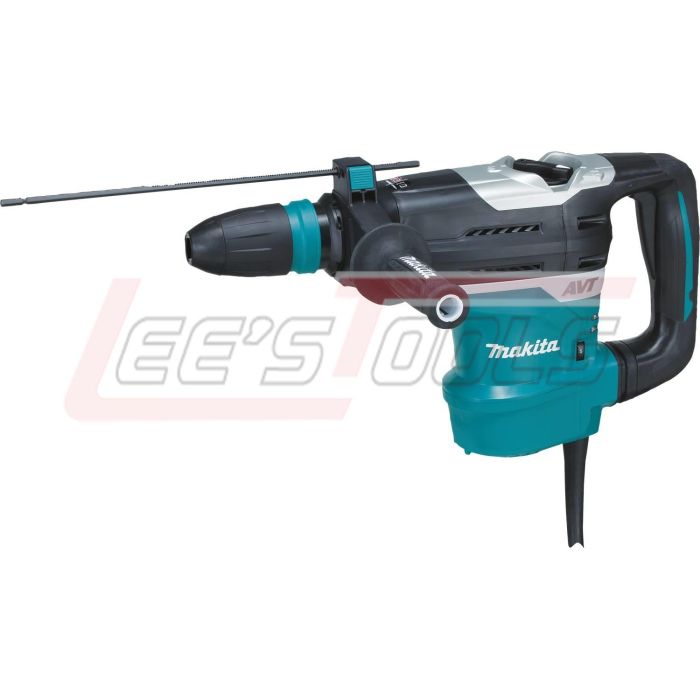

MAKITA HR4013C 1-9/16" AVT® Rotary Hammer, accepts SDS-MAX bits, 2-mode, var. spd., case
1-9/16" Advanced AVT® Rotary Hammer, accepts SDS-MAX bits
Features
·
Advanced Anti-Vibration Technology for
Significantly Less Vibration
·
Powerful 11 AMP motor delivers 8.4 ft.lbs. / 11.4
J. of impact energy to handle the most demanding applications
·
Advanced Anti-Vibration Technology (AVT®) is a
synchronized, three-component system that more effectively reduces vibration
resulting in a low 5m/s2
·
Advanced AVT® includes an air actuated
counterbalance that directs air pressure from the crank and barrel room into the
counterbalance cylinders to move counterweight pistons in the opposite direction
of the hammer mechanism to effectively reduce vibration
·
Advanced AVT® includes a vibration absorbing
housing with a spring loaded back handle and housing which moves independently
of the motor and hammer mechanism effectively isolating more vibration away from
the user
·
Advanced AVT® includes an integrated damper
spring at the base of the impact bolt engineered to absorb impact vibrations
from the drill bit
·
Constant speed control automatically applies
additional power to the motor to maintain speed under load to complete the most
challenging jobs
·
Soft start suppresses start-up reaction for more
control and better accuracy
·
"No hammering when idling" function automatically
reduces the speed of the motor which helps increase tool life and performance
·
Variable speed control dial enables user to match
the speed to the application for greater versatility
·
Torque limiting clutch engineered to prevent gear
damage by automatically disengaging gears if the bit binds
·
Sequential impact timing delivers timed hammering
during rotation to minimize overlapping bit impacts for up to 50% faster
drilling
·
L.E.D. power light indicates switch failure or
cord damage
·
L.E.D. service light notifies the user
approximately 8 hours before the brushes need to be replaced
·
Automatic brush cut-off protects commutator from
damage for longer tool life
·
2-mode operation for "Chipping Only" or
"Hammering with Rotation"
·
Lock-on or trigger activation in "Chipping Only"
mode with a push button start/stop control for more convenient operation
·
24 bit angle settings allow the bit to be set at
different positions for operating convenience
·
One-touch sliding chuck for quick bit changes
·
Includes a 16.4 ft. power cord for user
convenience
Includes:
Includes:
·
D-Handle Assembly, HR4013C (196792-8)
·
DEPTH ROD, HR4013C (331955-1)
·
Side Handle Assembly (123138-5)
·
Hammer Bit Grease (194683-7)
·
CLOTH F/WIPING OIL (443122-7)
Specifications:
|
AMPS |
11 |
|
Capacity (concrete drilling) |
1-9/16" |
|
Capacity (concrete drilling w/ core bit) |
4-1/8" |
|
Impact Energy (Joules) |
11.4 J |
|
Impact Energy (ft.lbs.) |
8.4 ft.lbs. |
|
Vibration (m/s²) |
5 |
|
Blows Per Minute (variable speed) |
1,450 - 2,900 BPM |
|
No Load Speed (variable speed) |
250 - 500 RPM |
|
Overall Length |
18-11/16" |
|
Cord Length (ft) |
15.6' |
|
Net Weight |
15.1 lbs. |
|
Shipping Weight |
27.8 lbs. |
|
Bit Type |
Accepts SDS-MAX |
|
UPC Code |
088381651325 |
| Availability | Out of Stock |
|---|---|
| Manufacturer | MAKITA |
| Manufacturer Sku | HR4013C |
