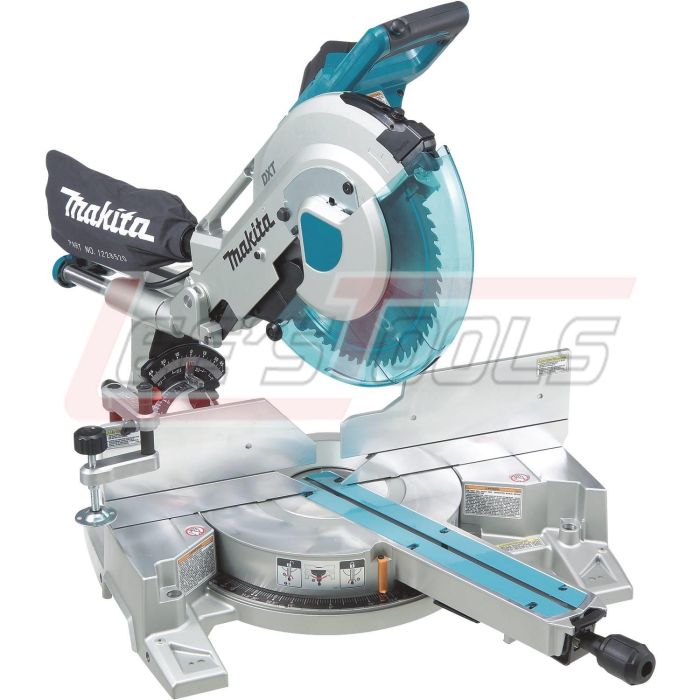

MAKITA LS1216L 12" Dual Slide Compound Miter Saw, laser

$599.99
Out of stock
SKU
774009

12" Dual Slide Compound Miter Saw with Laser

Largest Crown Molding Cutting Capacity in its Class

·         Powerful 15.0 AMP direct drive motor requires less maintenance and delivers 3,200 RPM

·         Large cutting capacity for up to 8" crown molding (nested), 6-1/2" baseboard (vertical), and 15" crosscut at 90°

·         Compact design with a patented 4-Steel Rail Sliding System further increases rigidity to produce superior cuts

·         Independent laser indicates line-of-cut whether blade is turning or not, with on/off switch and micro-adjustments for precise "left-of-blade" or "right-of-blade" cutting

·         Exclusive 6 linear ball bearings engineered to deliver smooth, solid, and adjustment-free "dead-on" accurate cuts

·         Exclusive 5-1/2" tall dual sliding fence system features versatile upper and lower fence adjustments for more precise miter and bevel cuts

·         Patented retractable rear guard and triple gear system for increased vertical cutting capacity

·         Miters 0°-52° left and 0°-60° right, with positive stops at 0°, 15°, 22.5°, 31.6° and 45° (left and right)

·         Bevels 0°-45° (left and right) with positive stops at 0°, 22.5°, 33.9° and 45° (left and right)

·         Dual rear-handle bevel lock is easily accessible, with front and top facing scales for more precise bevel adjustments

·         Electronic speed control maintains constant speed under load for smoother, higher quality cutting

·         Soft start feature for smooth start-ups

·         Easy one-touch miter lock for accurate adjustments and increased efficiency

·         Replaceable stainless steel miter scale features easy-to-read markings

·         Ergonomic rubberized horizontal D-handle design with oversized trigger switch for better fit and added comfort

·         Large precision machined aluminum base supports material for more efficient cutting

·         Double-jointed vertical vise can be installed on either the left or right side of the base for more versatile positioning

·         See-through blade guard system for greater visibility of the line of cut

·         Rubberized feet help tool remain stationary

·         Large adjustable levers for fast and easy fence adjustments

·         Fully enclosed bottom throat plate for a cleaner work surface

INCLUDES:

·         60T Carbide Tipped Blade (A-93712)

·         Vertical Vise (122854-6)

·         Dust Bag (122852-0)

·         Triangular Rule (762001-3)

·         Wrench #2.5 (783208-8)

·         Wrench #13 (782232-8)

Specification

Blade Diameter



12"

Arbor



1"

Crown Molding (nested)



8"

Baseboard (vertical)



6-1/2"

Max Cutting Capacity (Bevel/Miter)

90°/90°

3-5/8" x 15"



45°/45° L/R

3-5/8" x 10-1/2"

No Load Speed



3,200 RPM

AMPS (120V)



15.0

Dimensions (LxWxH)



31-3/4" x 25-1/4" x 28-3/8"

Net Weight (lbs.)



58.6

Shipping Weight (lbs.)



78.0

UPC Code



088381-602600



More Information
Availability Out of Stock
Manufacturer MAKITA
Manufacturer Sku LS1216L
