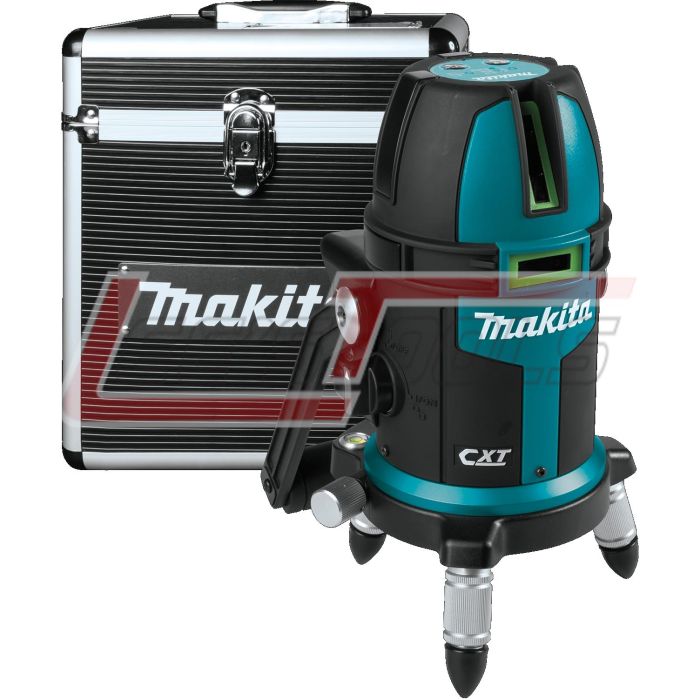

MAKITA SK209GDZ 12V max CXT™ Point Green Beam Laser, Self-Leveling Multi-Line/Plumb , Tool Only
12V max CXT™ Lithium-Ion Cordless Self-Leveling Multi-Line/Plumb Point Green Beam Laser,
Tool Only
VISIBILITY : Superior green beam
visibility compared to red beam lasers
ACCURACY : Best-in-class accuracy
of +/-1/16” at 33’
COMPATIBILITY : 12V max CXT™
battery delivers the convenience of a rechargeable tool battery
PRECISION : 360° rotating base
with fine vertical line adjustment knob
INCLUDES : Green lens, Case, Case
Strap, Case lock Key
Makita has an expanding line of
laser instruments engineered for increased accuracy and productivity. The 12V
max CXT™ Self-Leveling Multi-Line Green Laser (SK209GDZ, tool only, batteries
and charger sold separately) is a highly precise, highly visible and durable
laser for leveling, aligning, plumbing, and squaring. The green beam laser
technology provides increased visibility in bright light job site environments,
and fast self-leveling line stability is achieved in 3 seconds for increased
productivity.
Durability features include
highly protected laser windows that are recessed into the housing for increased
durability, pendulum lock for added protection of laser diode during transport
and storage, and a rubberized carrying handle designed to position out of the
way while operating and provide additional stand-up stability in handle down
position. It has dust and water resistance with IP 54 rating for increased
durability in harsh job site environments. It includes an integrated 5/8"
thread for mounting to Makita Tripod (#TK0LM1001F & TK0LM5030F) or Makita
Wall Bracket (#TK000ET03F) for increased versatility (Makita Tripods and Wall
Bracket sold separately).
For longer run time, 12V max CXT™
cordless tools are also compatible with the 12V max CXT™ Lithium-Ion 4.0Ah
battery (BL1041B). 12V max CXT™ Lithium-Ion batteries are engineered with a
Battery Protection Circuit that protects against overloading, over-discharging
and over-heating. It’s part of the expanding 12V max CXT™ series, combining
performance with superior ergonomics in a compact size.
Features
- 12V max CXT™ battery delivers the
convenience of a rechargeable tool battery platform
- Selectable one horizontal, two
vertical reference lines and plumb point required for level, align, plumb and
square applications
- Best-in-class accuracy of
+/-1/16” at 33’
- Fast self-leveling line stability
is achieved in up to 3 seconds for increased productivity
- Permanent laser detection mode
enables line detection with Makita Laser Detector (TK0LDG301F)
- 360° rotating base with fine
vertical line adjustment knob for increased accuracy
- Telescoping legs adjust to
desired height providing stability over uneven surfaces or positioning over
raised objects
- Power connector port allows 18V
LXT® Lithium-Ion Battery to be used as alternate power source with Power Source
Adapter (ADP05) and Adapter Cord (199006-4) (adapter and cord sold separately)
- Pendulum lock offers added
protection of laser diode during transport and storage
- Dust and water resistance with IP
54 rating for increased durability
- Highly protected laser windows
are recessed into the housing for increased durability
- Rubberized carrying handle is
designed to position out of the way while operating and provide additional
stand-up stability in handle down position
- Integrated 5/8" thread
allows for mounting to Makita Tripods (TK0LM1001F and TK0LM5030F) or Makita
Wall Bracket (TK000ET03F) for increased versatility
- Battery Protection Circuit
protects against overloading, over-discharging and over-heating
- Part of the expanding 12V max
CXT™ series, combining performance with superior ergonomics in a compact size
- Not compatible with 12V max
pod-style tools, batteries and chargers
- 3-year limited warranty
- Only use genuine Makita batteries
and chargers
Specifications
|
Battery |
12V max CXT™ Lithium-Ion |
|
Line accuracy (at 33') |
+/- 1/16" |
|
Point beam direction |
1 point (down) |
|
Line beam direction |
1 line (horizontal) 2
(vertical) |
|
Laser diode |
Class II, 510-530 nm |
|
Working range (line) |
50' |
|
Working range (point) |
100' |
|
Working Range with Detector |
65' |
|
Levelling range |
2° |
|
Auto shut off |
No |
|
Debris resistance |
IP54 rating (dust & water
resistance) |
|
Operating temperature (F) |
14° to 102° |
|
Net Weight (with battery, sold separately) |
3.3 lbs. |
|
Shipping Weight |
9.4 lbs. |
|
UPC Code |
088381-832540 |
| Availability | Out of Stock |
|---|---|
| Manufacturer | MAKITA |
| Manufacturer Sku | SK209GDZ |
